E12

The new E series stage monitor addresses a need for an extremely powerful yet compact wedge monitor.

Featuring a unique driver technology allows the crossover point to be nearly an octave higher than is typical, resulting in an extremely present but smooth sound particularly under pressure.

The 70° high frequency conical waveguide is coaxial with 12" and 15" driver giving a point source arrangement which is optimised for even dispersion and minimising feedback.

Features:

Small yet powerful;

Integral 35mm pole mount;

Coaxial driver arragement;

Sturdy construction.

Applications:

Touring Sound Reinforcement;

Stadiums, arenas, concert halls and theaters;

Medium/large-scable events;

Live Clubs, Live DJ Set, Parties.

Model:
E12
Brand:
TPA
Code:
E12

Availability:

Quantity:



Inquire Add to Basket

stage monitor dj monitor floor monitor Professional Speaker loudspeaker

Product Information

E12	Technical Specifications
Type	Compact 12" 2-way full range coaxial stage monitor
Frequency response	60Hz - 20KHz+/-3dB, -10dB@48Hz
Drivers	1 x 12" neodymium LF woofer 1 x 3" neodymium HF compression driver
Rated power(RMS)	400Wrms
Recommended AMP	800W into 8ohms
Sensitivity(1W/1M)	98dB
Maximum SPL	126dB continuous, 132dB peak
Nominal impedance	8Ω
Dispersion(-6dB)	70° Conical
Finish	Polyurea Paint
Protective grille	With black perforated steel
Connectors	2 x Neutrik speakon NL4

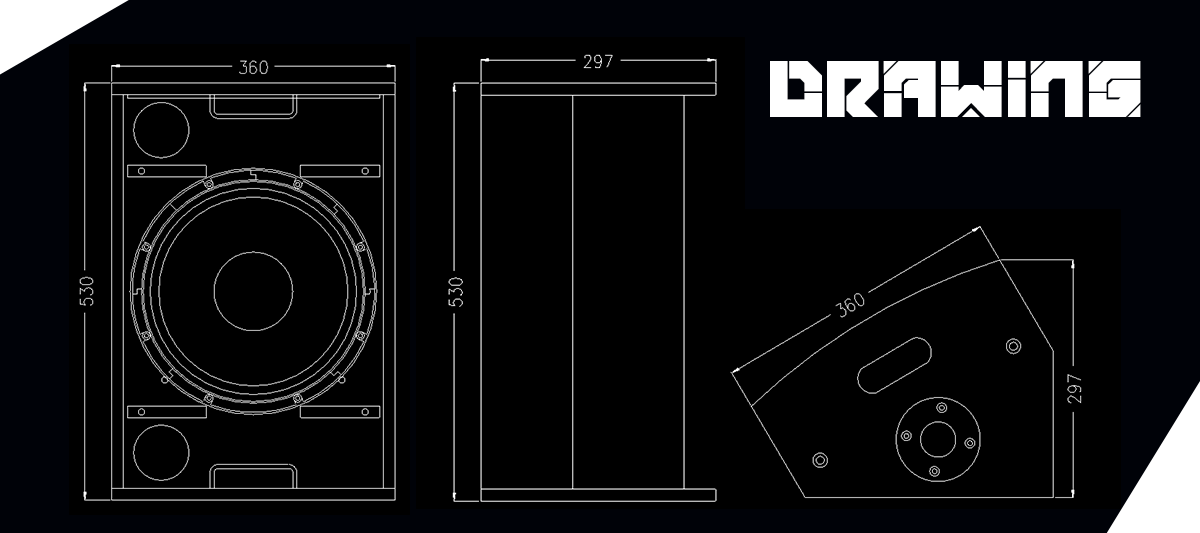

Dimensions	(W)530 x (H)297 x (D)360mm
Weight	23KG
