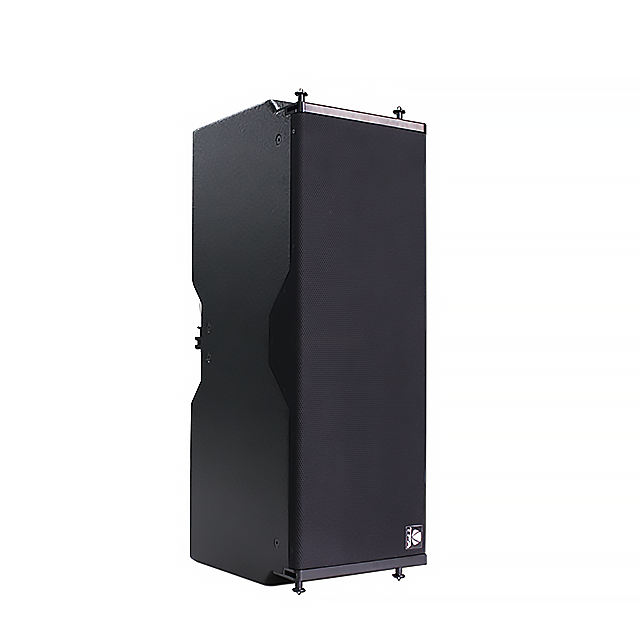

FLEX TP-850

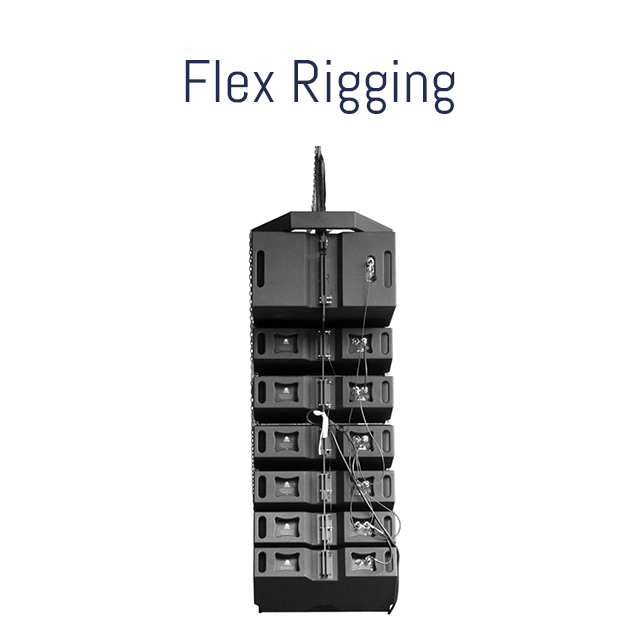

The Flex TP-850 is a 2-way line array element housing two 10"/3" VC neodymium drivers and a dendritic device on a 1.4" exit/3" VC neodymium HF compression driver along with a passive crossover network. The 90°constant directivity horizontal dispersion pattern is maintained down to 300Hz, while vertical HF dispersion of 10° allows the Flex Arrays to be scalable when needed. The mechanical design enables vertical splay angles to be set at 0°, 3°, 7.5°, 12.5°, and 15°, and two NL4 connectors wired in parallel are mounted on the rear panel.

Featurers:
Innovative Neodymium Drivers Supported;
Ideal system for mid-sized applications, or as downfill in large venues;
Extremely high power-to-size ratio;
Optimized line array behavior provides consistent response over long throws.

Applications:
Touring Sound Reinforcement;
Stadiums, arenas, concert halls and theaters;
Medium/large-scable events;
Churches & Auditorium installs etc.

Model:
Flex TP-850
Brand:
TPA
Code:
Flex TP-850

Availability:

Quantity:



Inquire Add to Basket

Line Array line source array line array system Professional Speaker

Product Information

Flex TP-850	Technical Specifications
Type	Compact 2-way line array element
Frequency response	55Hz - 20KHz+/-3dB, -10dB@48Hz
Drivers	2 x 10"/3" VC neodymium LF woofers 1 x 3" neodymium HF compression driver
Rated power(RMS)	850Wrms
Recommended AMP	1000-1600W into 8ohms
Sensitivity(1W/1M)	102dB
Maximum SPL	132dB continuous, 138dB peak
Nominal impedance	8ohm nominal
Dispersion(-6dB)	90° horizontal, 15° vertical
Finish	Polyurea Paint
Protective grille	With black perforated steel
Connectors	2 x Neutrik speakon NL4

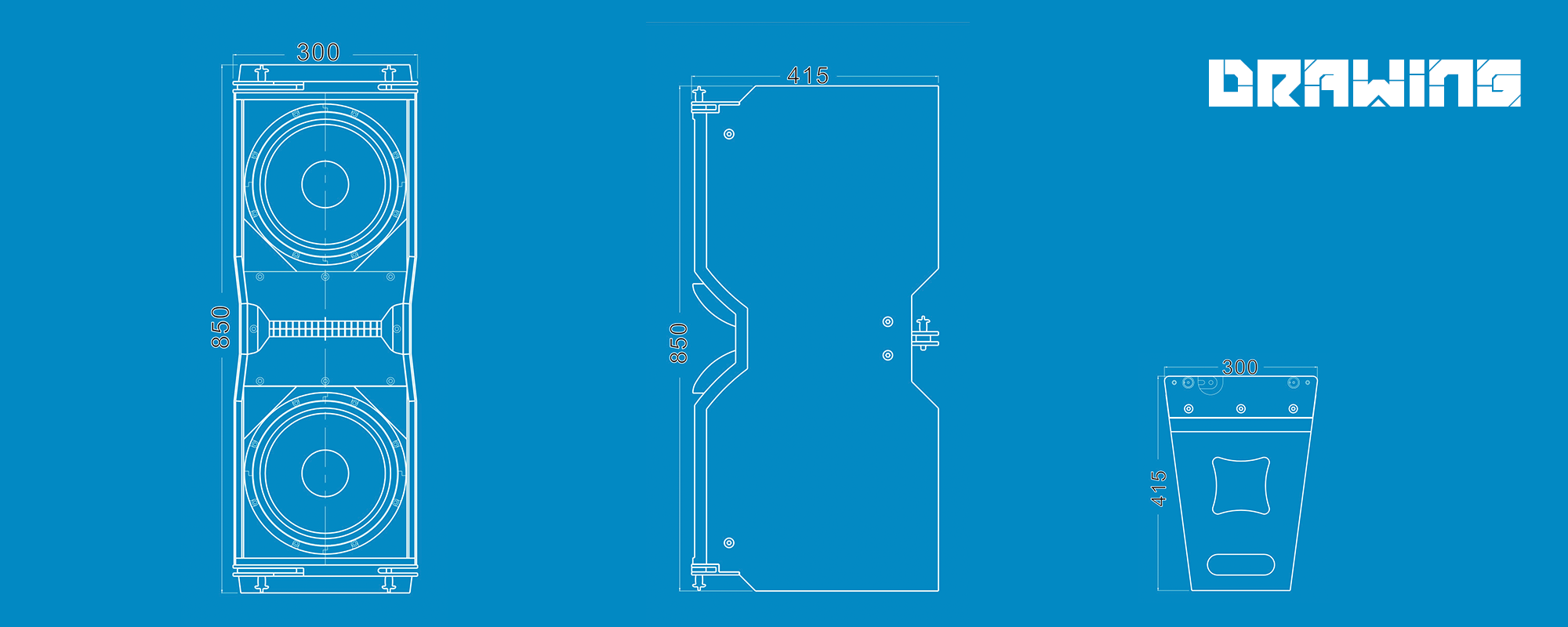

Dimensions	(W)850 x (H)300 x (D)415mm
Weight	35KG
