K-TOP

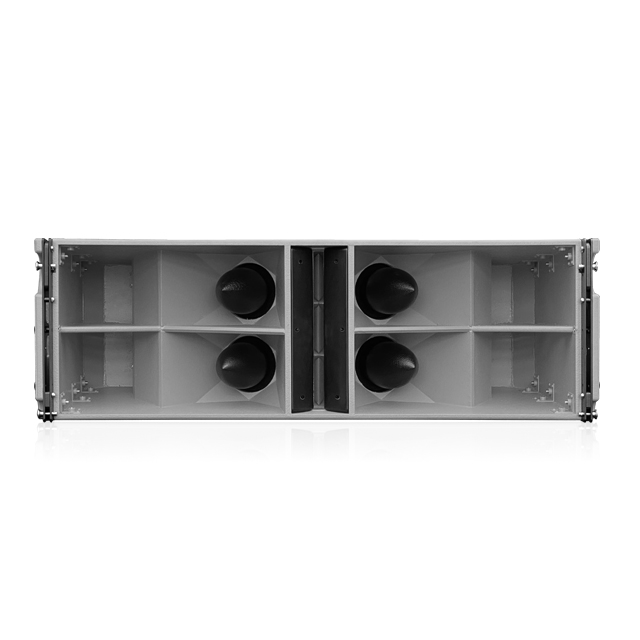

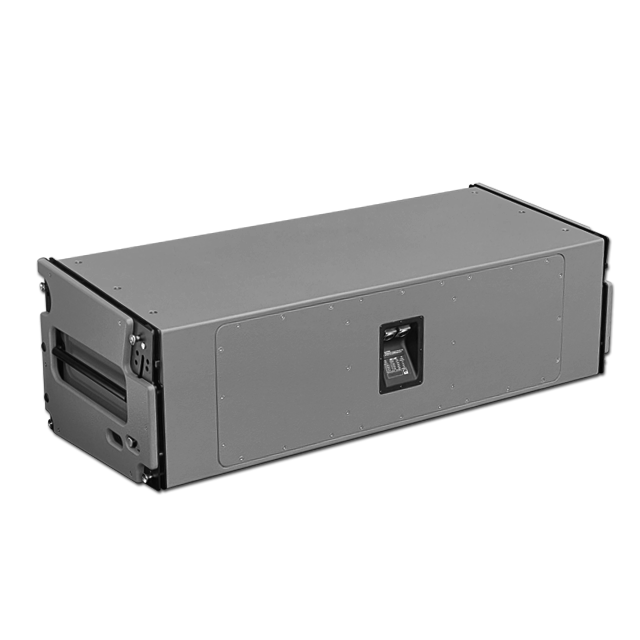

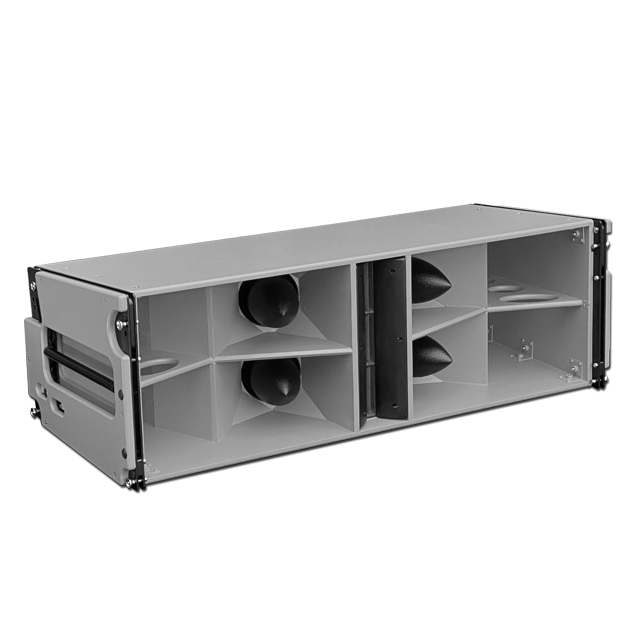

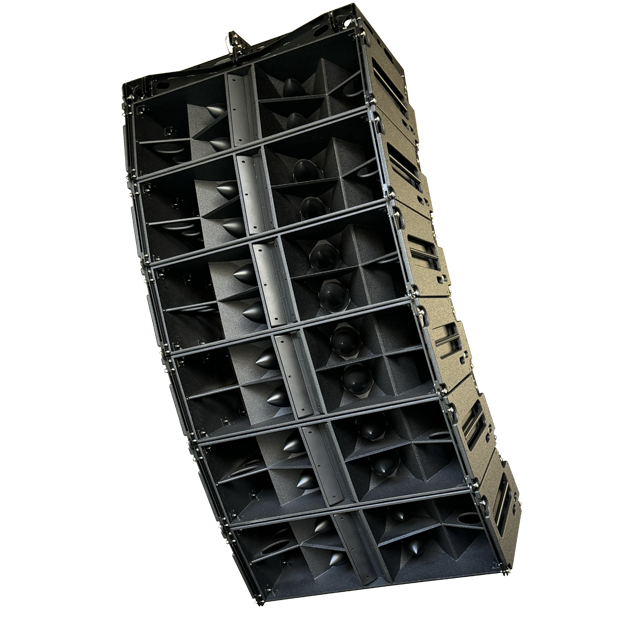

TPA new dual 15" line array element K-TOP incorporates 2 x 15" neodymium LF woofers, 4 x 8" neodymium MF drivers on its own bullt-shape phase plugs and 3 x 3" HF neodymium compression drivers on an advanced horn to equalize the path lengths and, with 90 degrees constant directivity horizontal coverage(having 0 - 7 degree) splay between adjacent units.

Features:

High performance 3 way line array;

Optimized line array behavior provides consistent response over long throws;

Extremely high power-to-size ratio;

Very high SPL and long throw for touring purpose.

Applications:

Touring Sound Reinforcement;

Stadiums, arenas, concert halls and theaters;

Large scale events;

Any large electronic music scene

Model:
K-TOP
Brand:
TPA
Code:
K-TOP

Availability:

Quantity:



Inquire Add to Basket

Line Array Sound System Professional Speaker Pro Audio

Product Information

K-TOP	Technical Specifications
Type	Compact 3 way line array element
Frequency response	60Hz - 20KHz+/-3dB, -10dB@48Hz
Drivers	2 x 15" neodymium LF woofers 4 x 8" neodymium Mid drivers 3 x 3" neodymium HF compression drivers
Rated power(RMS)	LF1: 400W/8ohm; LF2: 400W/8ohm; MF: 800W/16ohm; HF: 225W/24ohm
Recommended AMP	1600W -3200W into 4ohm
Sensitivity(1W/1M)	LF1: 105dB / LF2: 105dB / MF: 110dB / HF: 110dB
Maximum SPL	144dB continuous, 150dB peak
Nominal impedance	LF1: 8ohms / LF2: 8ohms / MF: 16ohm / HF: 24ohm
Dispersion(-6dB)	90° horizontal, 7° vertical
Finish	Polyurea Paint
Protective grille	With/without black perforated steel
Connectors	2 x Neutrik speakon NL8

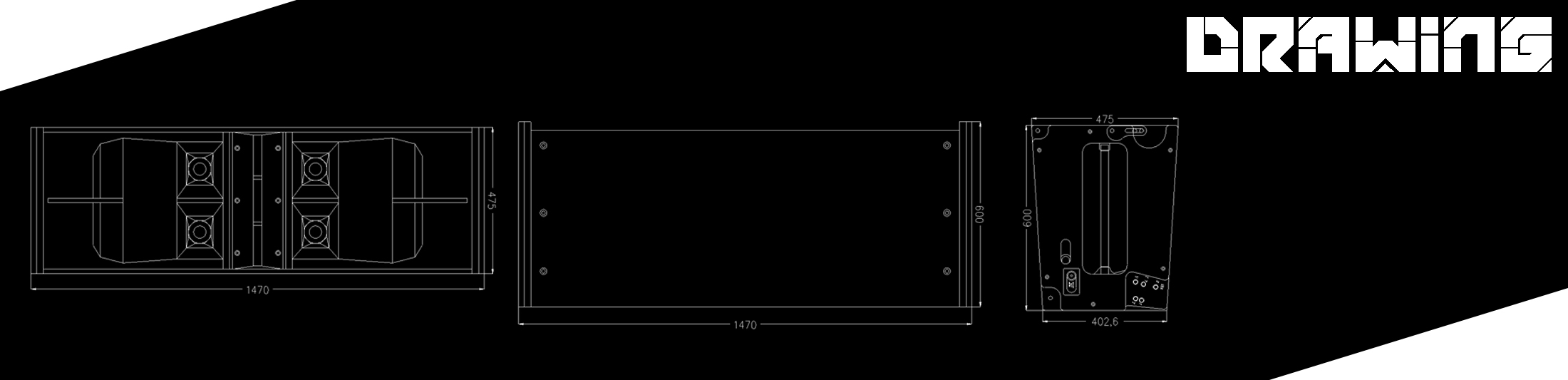

Dimensions	(W)1470 x (H)475 x (D)600mm
Weight	123KG

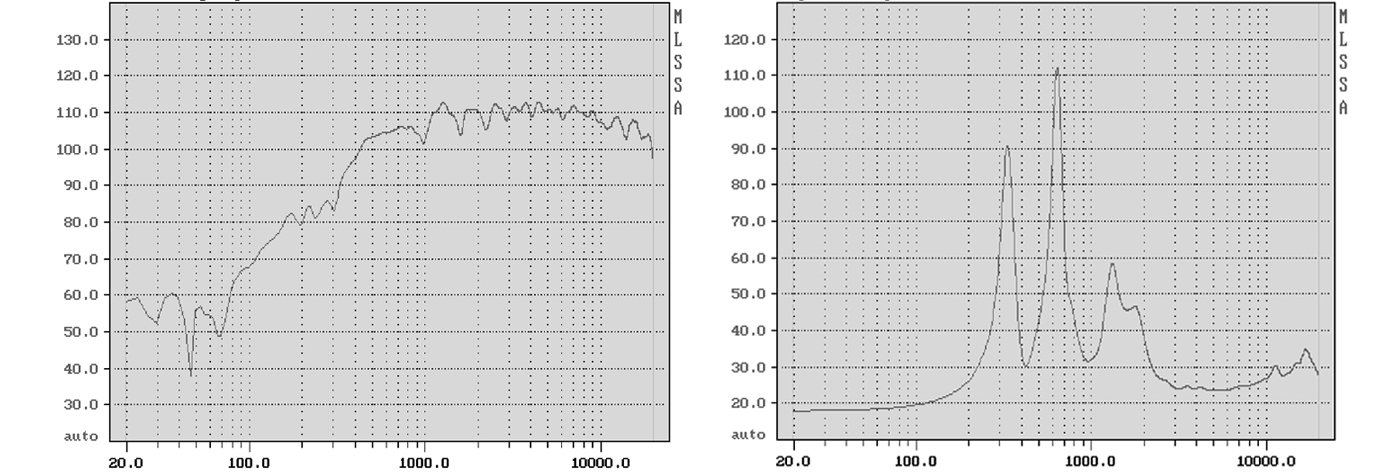

FREQUENCY / IMPEDANCE Chart of High Section of K-TOP

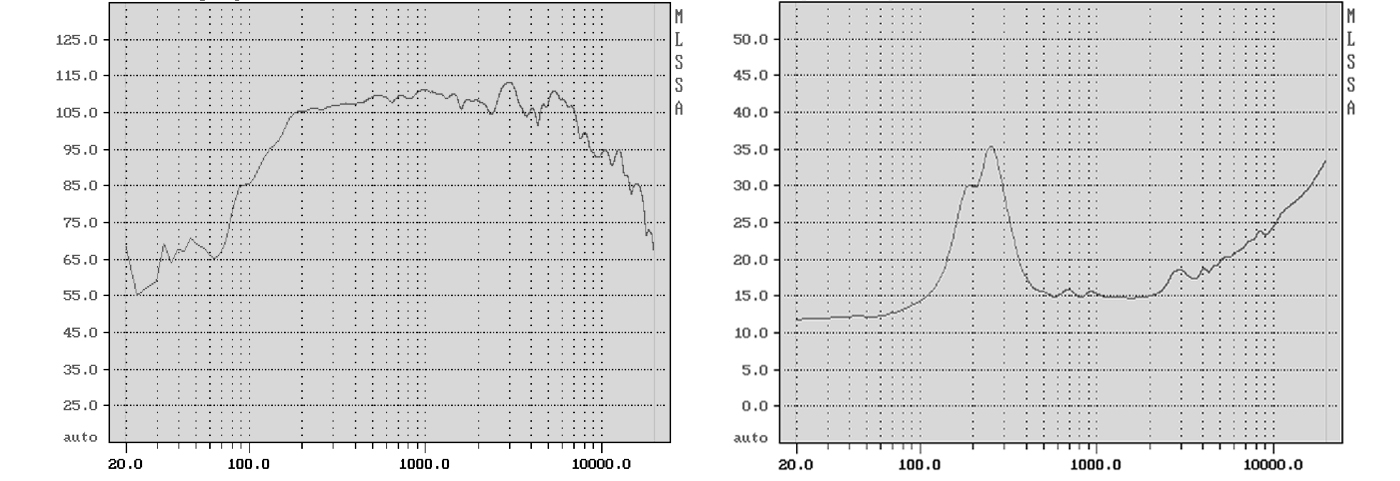

FREQUENCY / IMPEDANCE Chart of Mid Section of K-TOP

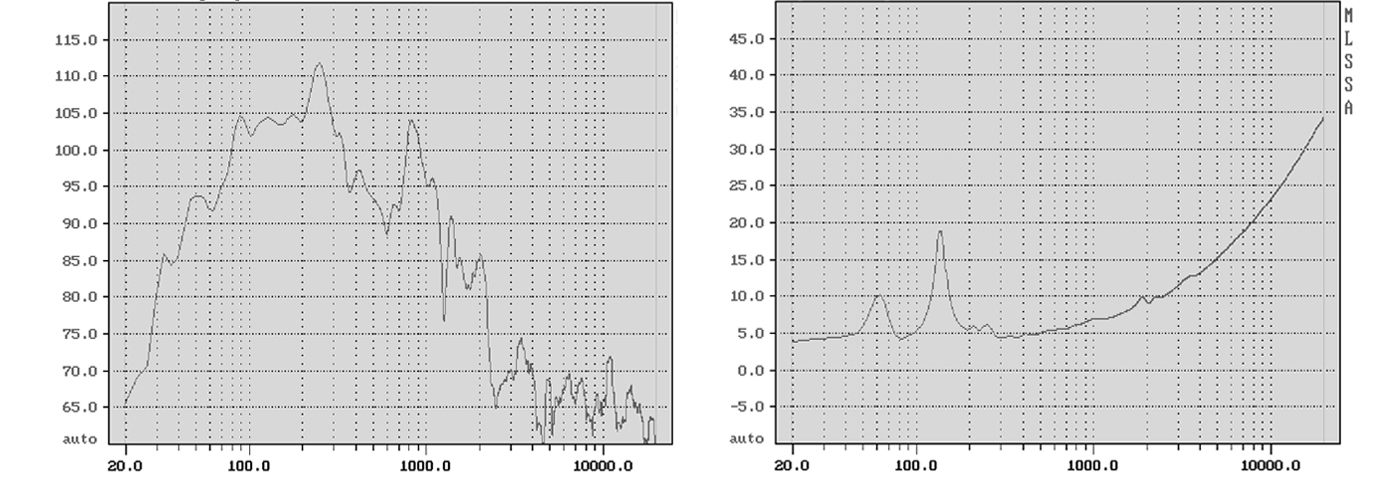

FREQUENCY / IMPEDANCE Chart of Low Section of K-TOP
