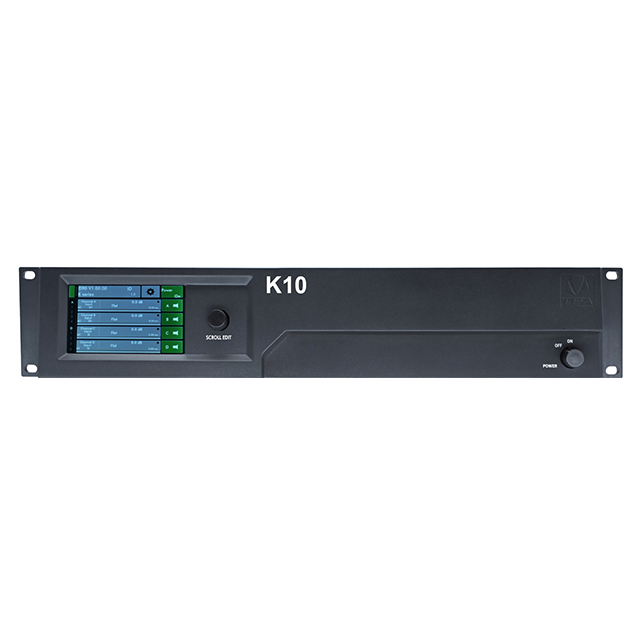

K10
TPA
K10
| Availability: | |
|---|---|
| Quantity: | |
Specifications:
K10
Number of Channel: Output Interface
Number of output channels 4
Speaker outputs A/B/C/D4 x NL4 mixed/bidirectional active outputs A/B and C/D2 x NL4
Number of input channels 4-channel output 1 x NL8
Analog input(A1-A43) Pin XLR female
link（A1-A43) Pin XLR male
Output
AES input(D1-D2) Pin XLR female Max power output per channel@8Ω 2000W
link(D1-D2) Pin XLR male Max power output per channel@4Ω 4000W
Dante™*
(only available in Dante Version)
(2x RJ45）
Max power output per channel@2.67Ω NO
Max power output per channel@2Ω NO
Audio
Input sensitivity 17dB-47dB Max Unclipping Voltage Output 185V
peak
Input sensitivity in default 32 dB Max current output 185V
peak
Output noise
A-weighted @8Ω Analog to
Analog/Digital to Analog
<67dBv Power
Dynamic range
A-weighted @8Ω Analog to
Analog/Digital to Analog
110db Power Connector
powerCON ® -
HC
Damping factor @8Ω 20-20KHz >5000 PFC
Slew rate > 50V/
US
Voltage
100 - 127 / 208 - 250 V，50 - 60 Hz
Frequency response 1W8Ohm 20Hz-20kHz+/-1dB
Current consumption
8/1Max power output
26A@110V 13A@220V
Crosstalk -70dB Standby power consumption < 260 W
Total Harmonic Distortion lowcut under 1KHz+1dB<0.008% Max power consumption < 3600 W
THD+N <0.8%
Input impedance 20kΩ(balance)
Input maximum volume 21dBu Indicator
Power/Main Power Switch
DSP SCROLL/EDIT(Digital rotary encoder)
AD Convert 24 bit 122dbu Dynamic range
Display：
Multi-color TFT touch screen，
3.5"/480 x 640 Pixels
DA Convert 24 bit 118dbu Dynamic range
Sample-rate conversion 24 bit 96K Temp. Control
0-80℃
Delay
High input area 2S, each output up
to 50ms, for time alignment.
Cooling
Continuously temprerature control through
variable speed fan
EQ
Raised cosine, custom, parameters:
peak, high/low shelving, full pass,
band pass, band stop, high/low pass
X-over
Linear phase(FIR)、Mix(FIR-IIR)、
Butterworth、Linkwitz-Riley、Bessel:
6 dB/oct to 48 dB/oct (IIR)
Limiter
Limiter，compressor
Dimensions
(H x W x D）88x 483 x 512 MM
Pink Noise 10Hz-20KHz; Weight 16KG
