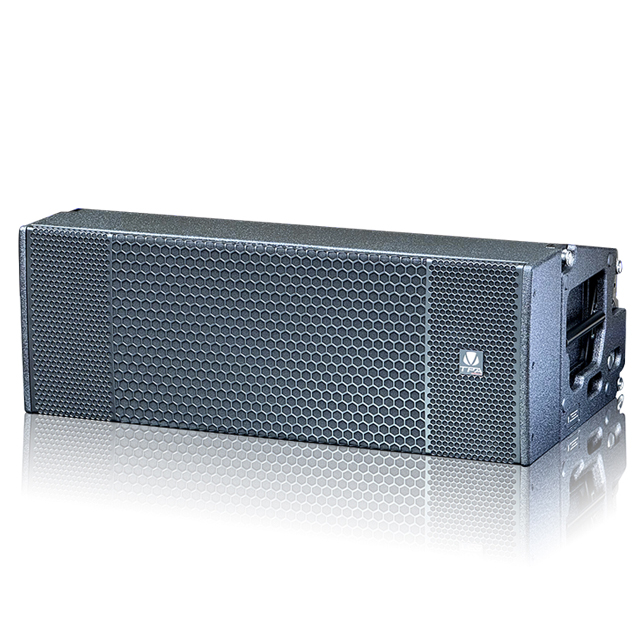

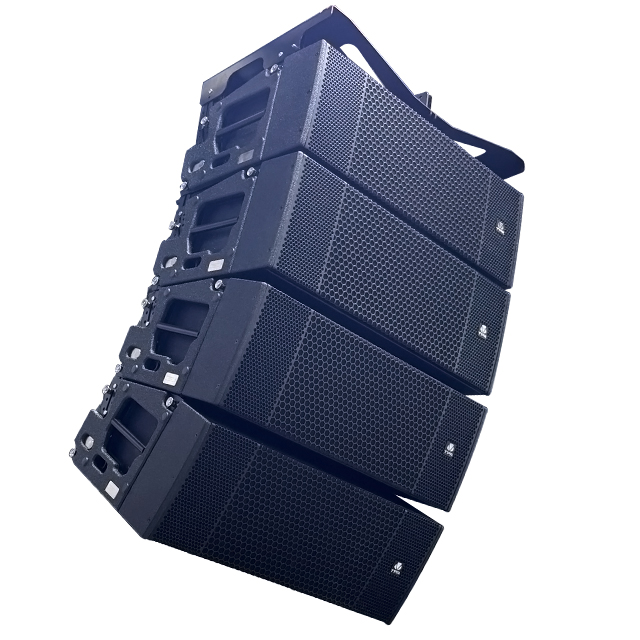

Kama TP-1081

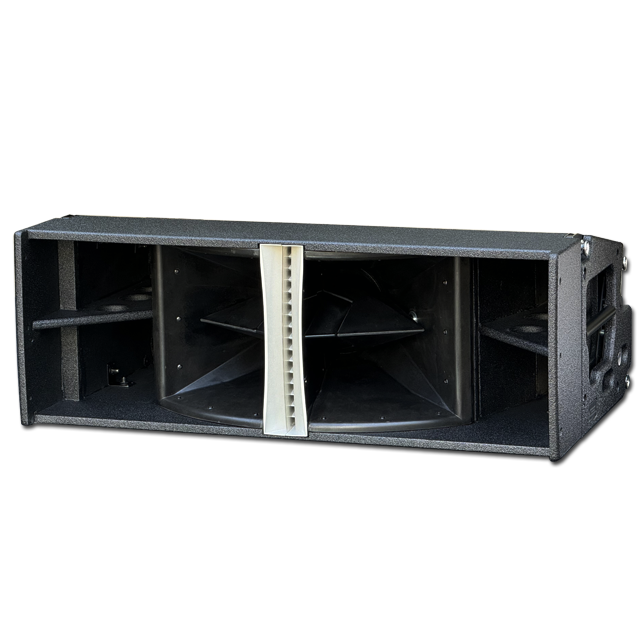

The Kama TP-1081 incorporates two 10"/3" VC neodymium cone drivers, one 8" neodymium mid driver which can go up 8KHz, and one 1.75" neodymium compression driver on a dendritic waveguide made in full aluminum to conduct super clean and crisp sound over long throws and, with 90 degrees constant directivity horizontal coverage (having 0 to 12 degree spray between adjacent units).

Features:
High performance 3 way line array;
Optimized line array behavior provides consistent response over long throws;
Extremely high power-to-size ratio;
Very high SPL and long throw for touring purpose.

Applications:
Touring Sound Reinforcement;
Stadiums, arenas, concert halls and theaters;
Medium/large-scable events;
Free party, teknival, raves

Availability:

Quantity:



Inquire Add to Basket

Line Array Pro Audio Sound System Professional Speaker Sound system culture

Product Information

KAMA TP-1081	Technical Specifications
Type	Dual 10" compact 3 way line array element
Frequency response	85Hz - 20KHz+/-3dB, -10dB@60Hz
Drivers	2 x 10" neodymium LF woofers 1 x 8" neodymium Mid drivers 1 x 1.75" neodymium HF compression drivers
Rated power(RMS)	LF1: 400W/12ohm; LF2: 400W/12ohm; MF: 200W/16ohm; HF: 100W/16ohm
Recommended AMP	800W -1350W into 8ohm
Sensitivity(1W/1M)	LF1: 104dB / LF2: 104dB / MF: 108dB / HF: 109dB
Maximum SPL	136dB continuous, 142dB peak
Nominal impedance	LF1: 12ohms / LF2: 12ohms / MF: 16ohm / HF: 16ohm
Dispersion(-6dB)	90° horizontal, 12° vertical
Finish	Polyurea Paint
Protective grille	With/without black perforated steel

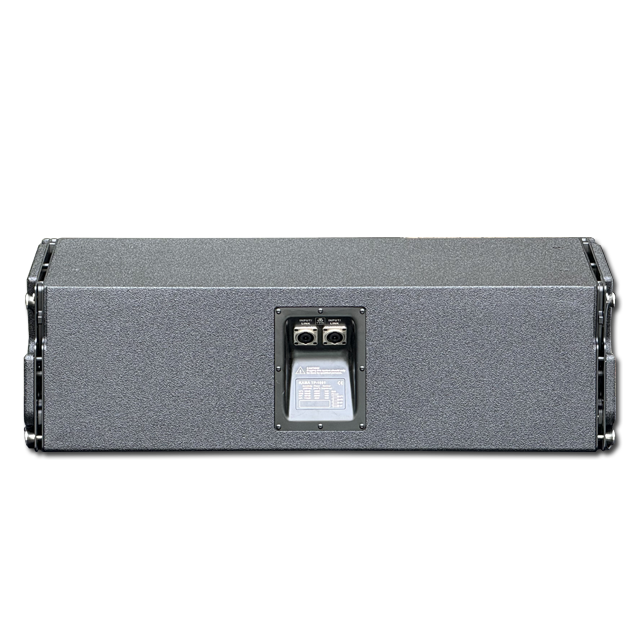

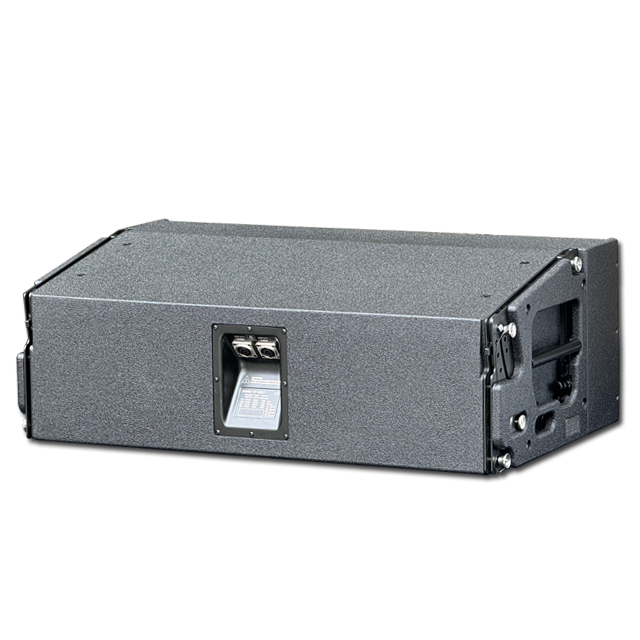

Connectors	2 x Neutrik speakon NL8

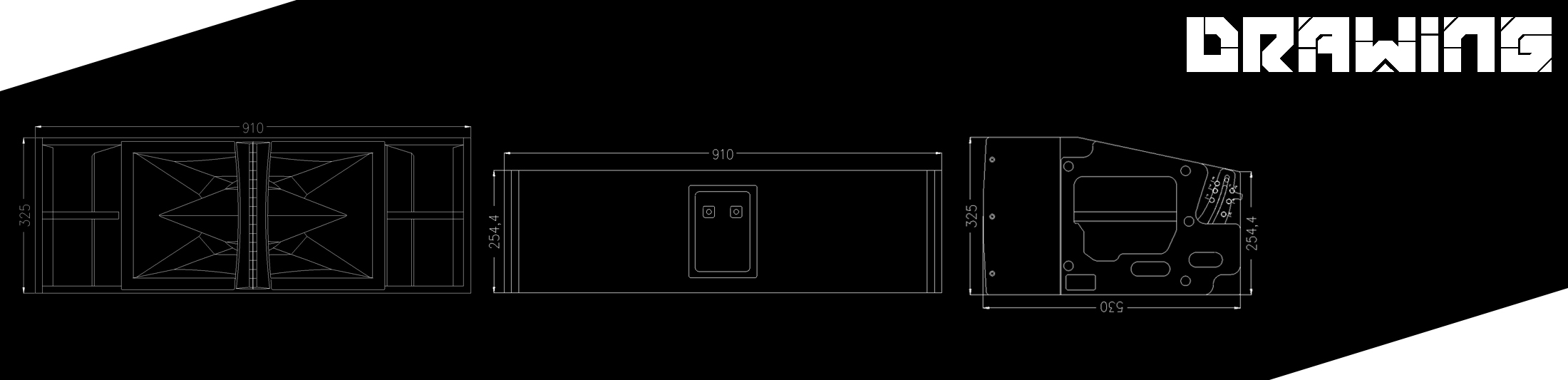

Dimensions	(W)910 x (H)325 x (D)530mm
Weight	50KG

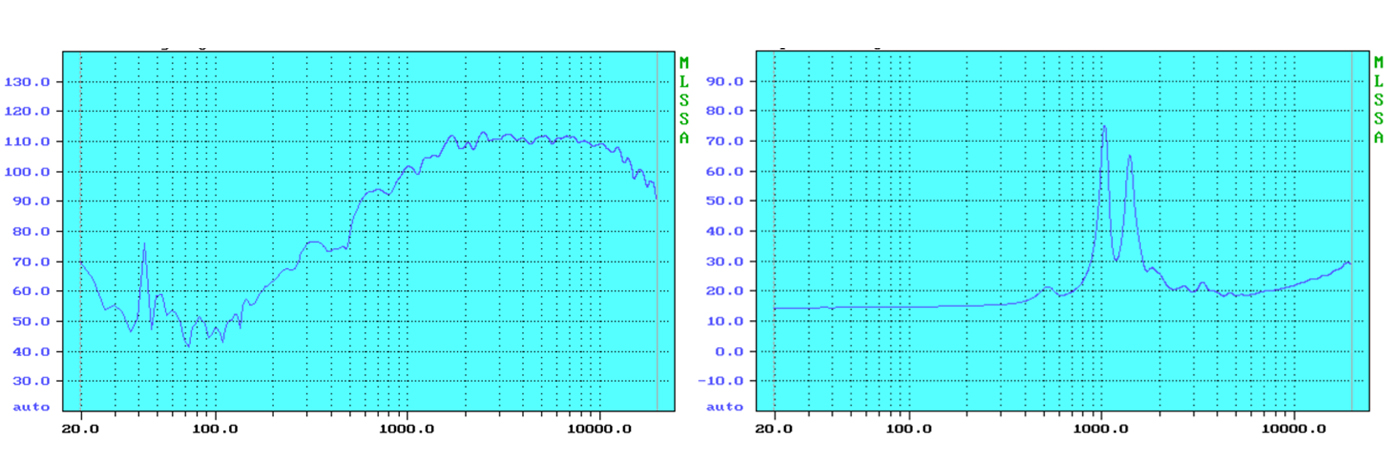

FREQUENCY / IMPEDANCE Chart of High Section of Kama TP-1081

1081HF

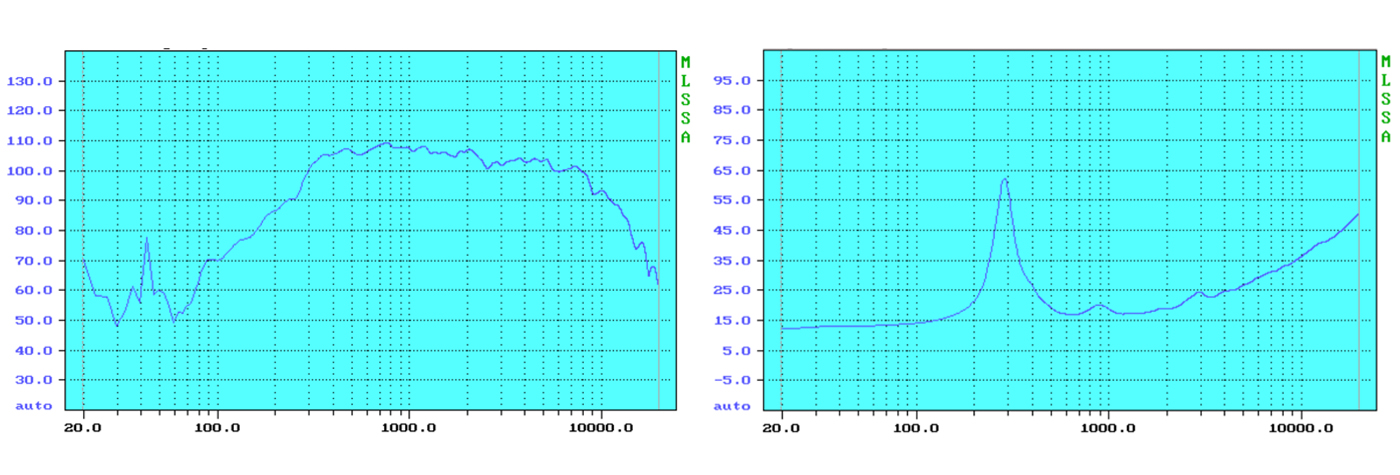

FREQUENCY / IMPEDANCE Chart of Mid Section of Kama TP-1081

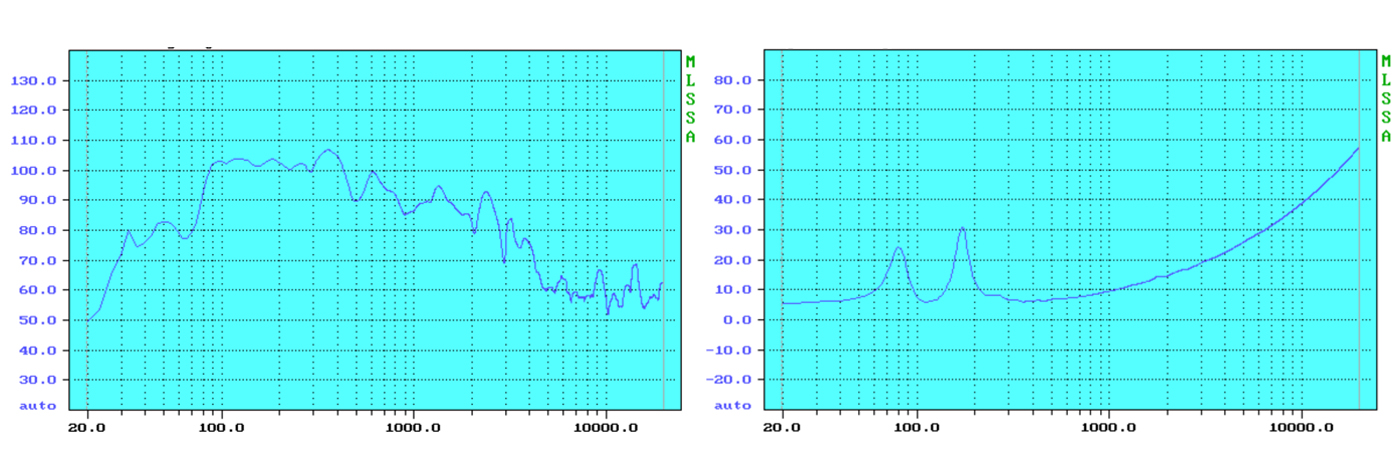

FREQUENCY / IMPEDANCE Chart of Low Section of Kama TP-1081

1081lf
