Home » Products » Line Array » Kama TP-1310

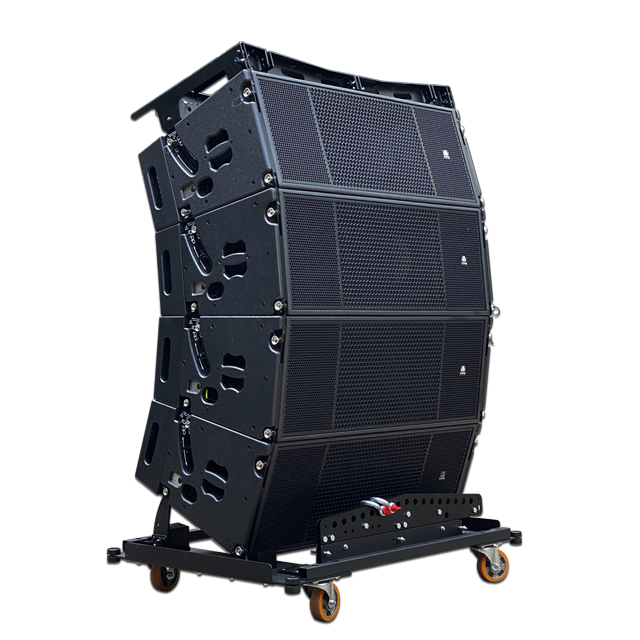

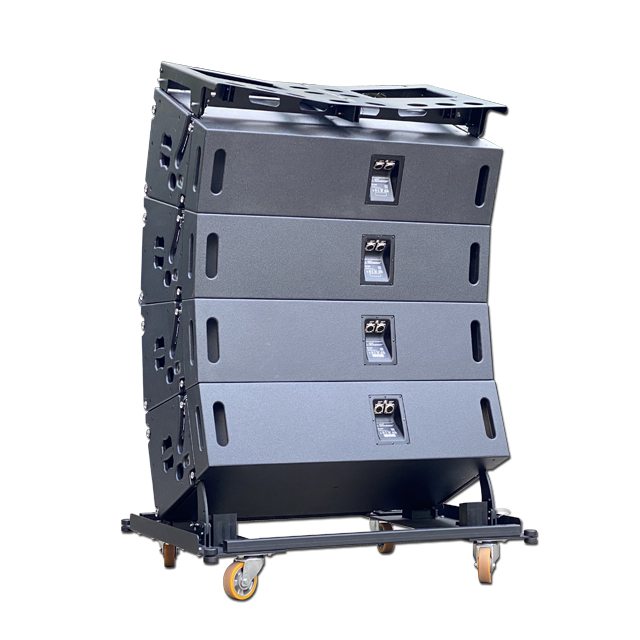

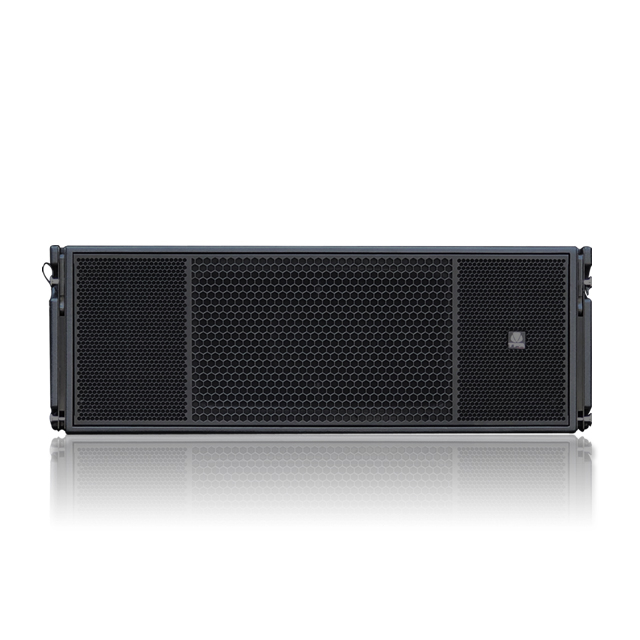

Kama TP-1310

TPA new dual 13.5” pure 3-way line array element KAMA TP-1310 incorporates 2 x 13.5” neodymium LF woofers, 1 x 10” neodymium MF driver loaded into its own horn behind the HF driver like a coaxial configuration to make sure of a perfect time alignment and 1 x 3” neodymium compression driver on an advanced waveguide to equalize the path lengths and, with 90 degrees constant directivity horizontal coverage(having 0 – 12 degree splay between adjacent units).

Features:

High performance 3 way line array;

Optimized line array behavior provides consistent response over long throws;

Extremely high power-to-size ratio;

Very high SPL and long throw for touring purpose.

Applications:

Touring Sound Reinforcement;

Stadiums, arenas, concert halls and theaters;

Medium/large-scale events;

Magnet pin lock for easy and fast setup.

Model:
Kama TP-1310
Brand:
TPA

Availability:

Quantity:



Inquire Add to Basket

Line Array Pro Audio Sound System Sound system culture Professional Speaker

Product Information

KAMA TP-1310	Technical Specifications
Type	Compact 3 way line array element
Frequency response	55Hz - 20KHz+/-3dB, -10dB@48Hz

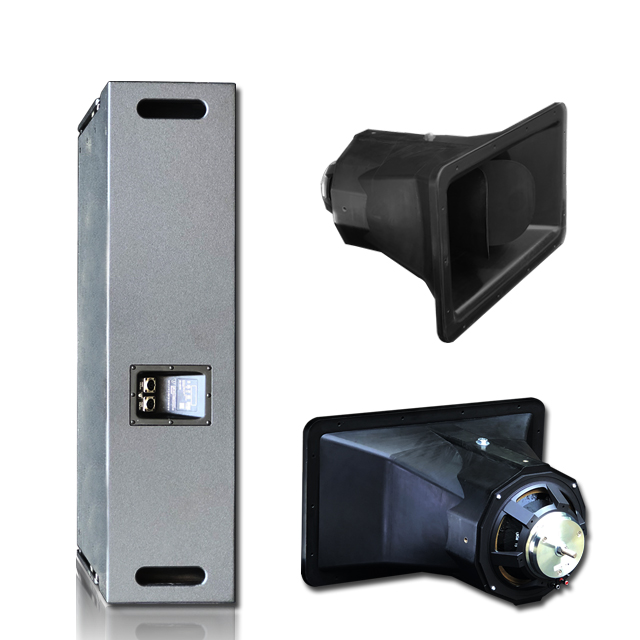

Drivers	2 x 13.5" neodymium LF woofers 1 x 10" neodymium Mid driver 1 x 3" neodymium HF compression driver
Rated power(RMS)	LF1: 450W/8ohm; LF2: 450W/8ohm; MF: 250W/16ohm; HF: 75W/32ohm
Recommended AMP	1600W -3200W into 4ohm
Sensitivity(1W/1M)	LF1: 105dB / LF2: 105dB / MF: 109dB / HF: 109dB
Maximum SPL	141dB continuous, 146dB peak
Nominal impedance	LF1: 8ohms / LF2: 8ohms / MF: 16ohm / HF: 32ohm
Dispersion(-6dB)	90° horizontal, 12° vertical
Finish	Polyurea Paint
Protective grille	Black perforated steel
Connectors	2 x Neutrik speakon NL8

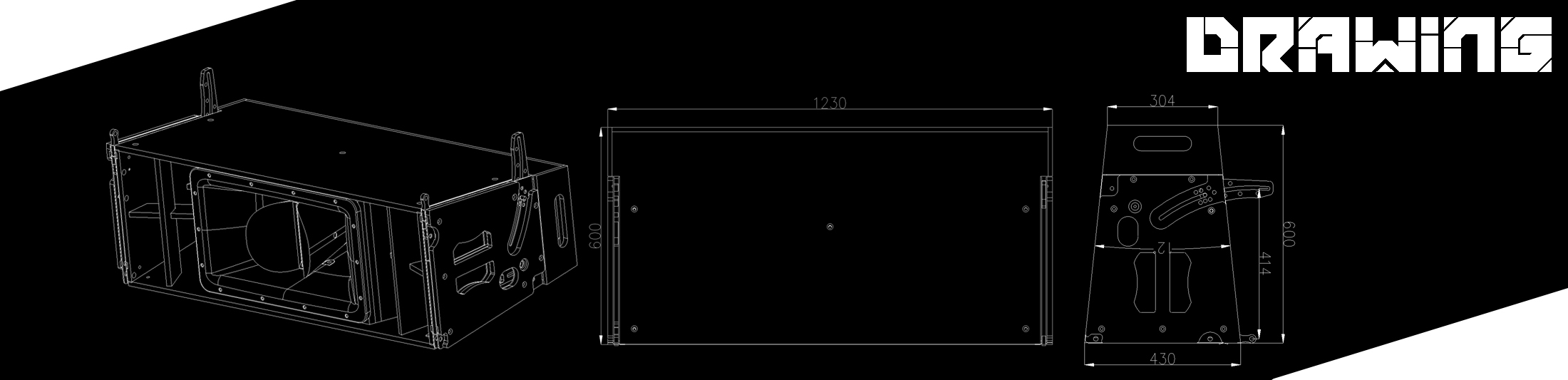

Dimensions	(W)1230 x (H)430 x (D)600mm
Weight	85KG

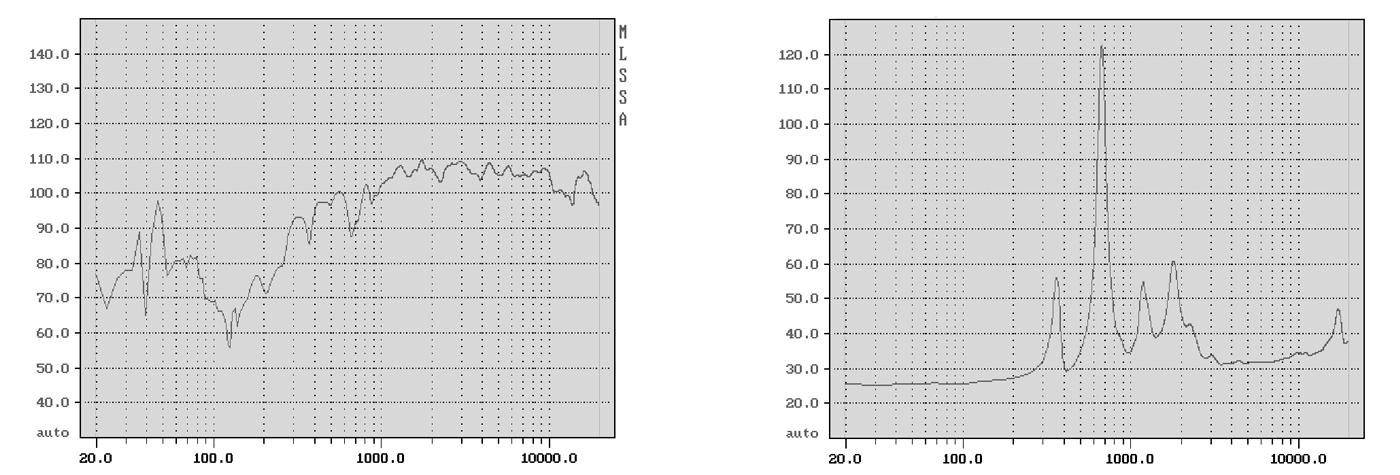

FREQUENCY / IMPEDANCE Chart of High Section of Kama TP-1310

1310hf

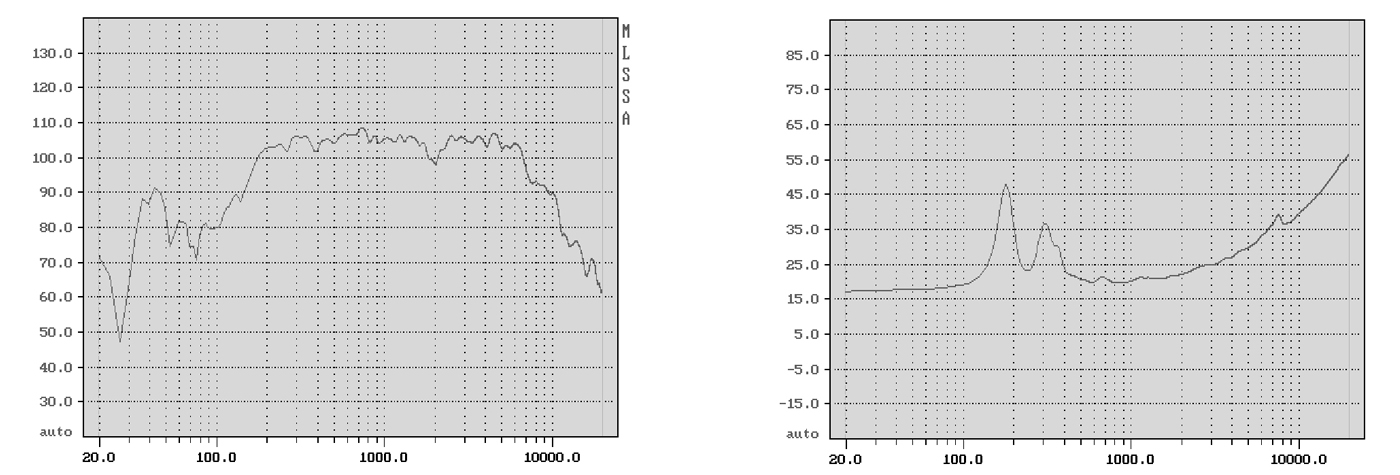

FREQUENCY / IMPEDANCE Chart of Mid Section of Kama TP-1310

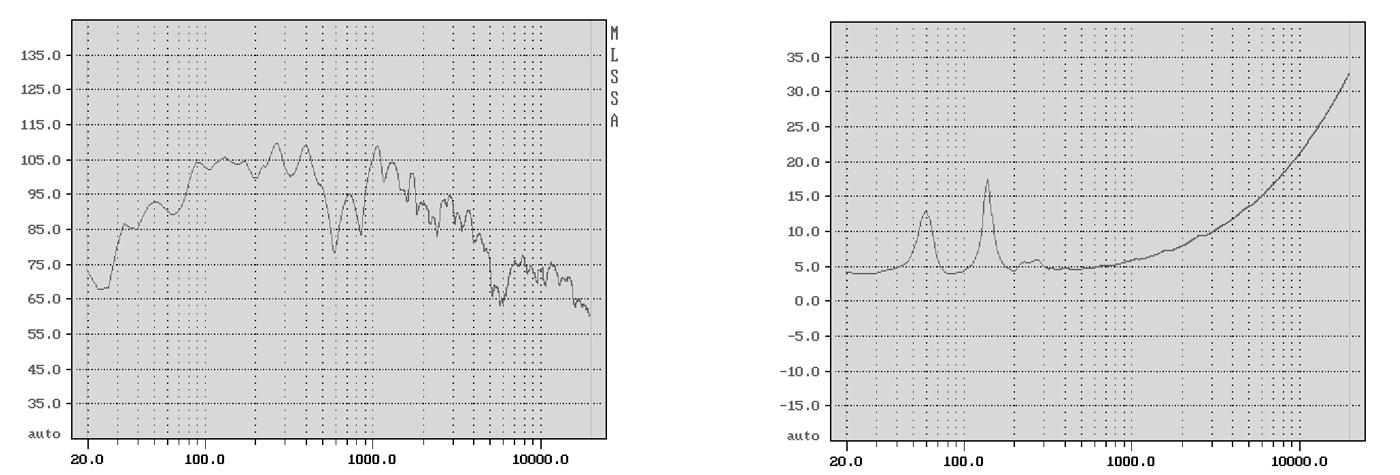

FREQUENCY / IMPEDANCE Chart of Low Section of Kama TP-1310
