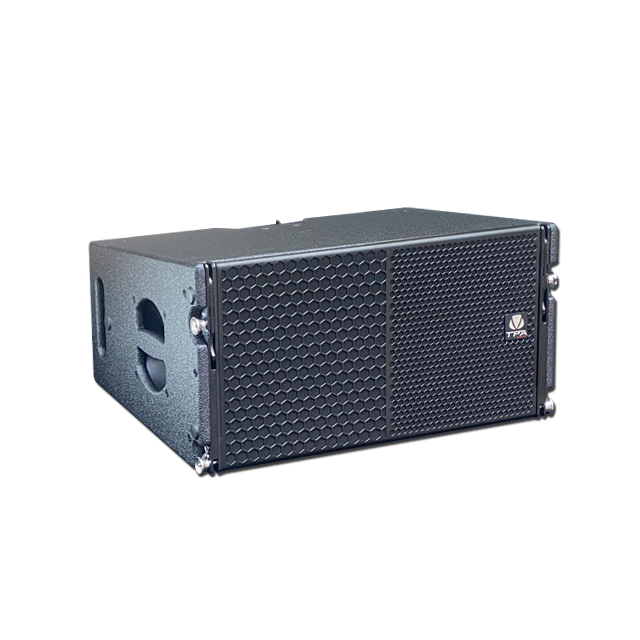

Kiva TP-460

The Kiva TP-460 is a 2-way line array element housing single 10"/3" VC neodymium drivers and a very advanced waveguide on a 1.4" exit/3" VC neodymium HF compression driver along with a passive crossover network. The 90°constant directivity horizontal dispersion pattern is maintained down to 350Hz, while vertical HF dispersion of 10° allows the Kiva Arrays to be scalable when needed. The mechanical design enables vertical splay angles to be set at 0°,1°, 2°, 3°, 4°, 5°, 7.5° and 10°, and two NL4 connectors wired in parallel are mounted on the rear panel.

The frequency pattern control of a flown hang of 6 can go down to 70Hz. The cabinet is equipped with multiple handles and constructed by 18-layer ply wood and coated with Polyurea painting.

2* Kiva TP-460's can be put into the horn space of the sub P181/P181-SP to make the package real compact and easy to go, two man for a festival PA.

Features:

Innovative Neodymium Drivers Supported;

Ideal system for mid-sized applications, or as downfill in large venues;

Extremely high power-to-size ratio;

Optimized line array behavior provides consistent response over long throws.

Applications:

Touring Sound;

Outdoor and indoor concerts, festivals and such;

Small to medium scale events.

Model:
Kiva TP-460
Brand:
TPA

Availability:

Quantity:



Inquire Add to Basket

Line Array Pro Audio Sound System Professional Speaker Sound system culture

Product Information

KIVA TP-460	Technical Specifications
Type	Compact 2-way line array element
Frequency response	60Hz - 20KHz+/-3dB, -10dB@55Hz
Drivers	1 x 10"/3" VC neodymium LF woofers 1 x 3" neodymium HF compression driver
Rated power(RMS)	450Wrms
Recommended AMP	600-1000W into 8ohms
Sensitivity(1W/1M)	102dB
Maximum SPL	131dB continuous, 136dB peak
Nominal impedance	8ohm nominal
Dispersion(-6dB)	90° horizontal, 10° vertical
Finish	Polyurea Paint
Protective grille	With black perforated steel
Connectors	2 x Neutrik speakon NL4
Dimensions	(W)598 x (H)300 x (D)420mm
Weight	23KG

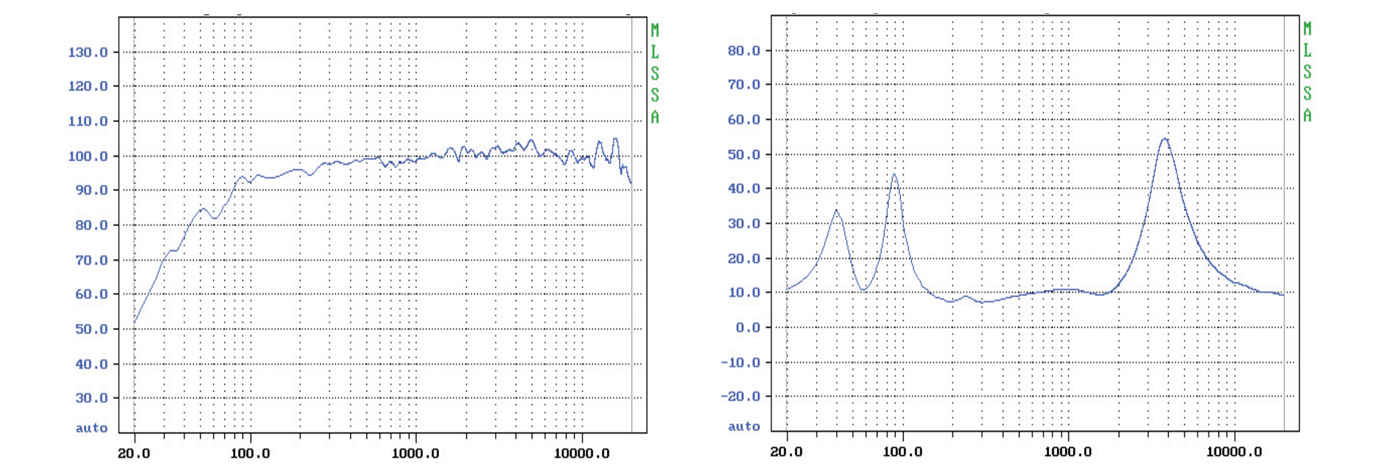

FREQUENCY / IMPEDANCE Chart of Kiva TP-460
