Kiva TP-920

The new Kiva TP-920 is a 2-way line array element housing two 10"/3" VC neodymium drivers and a very advanced waveguide on a 1.4" exit/3" VC neodymium HF compression driver along with a passive crossover network. The 90°constant directivity horizontal dispersion pattern is maintained down to 300Hz, while vertical HF dispersion of 10° allows the Kiva Arrays to be scalable when needed. The mechanical design enables vertical splay angles to be set at 0°,1°, 2°, 3°, 4°, 5°, 7.5° and 10°, and two NL4 connectors wired in parallel are mounted on the rear panel.

Featurers:

Innovative Neodymium Drivers Supported;

Ideal system for mid-sized applications, or as downfill in large venues;

Extremely high power-to-size ratio;

Optimized line array behavior provides consistent response over long throws.

Applications:

Touring Sound Reinforcement;

Stadiums, arenas, concert halls and theaters;

Medium/large-scable events;

Live Clubs, DJ Live Set, Parties.

Model:
Kiva TP-920
Brand:
TPA

Availability:

Quantity:



Inquire Add to Basket

Line Array Pro Audio Sound System Professional Speaker Sound system culture

Product Information

KIVA TP-920	Technical Specifications
Type	Compact 2-way line array element
Frequency response	55Hz - 20KHz+/-3dB, -10dB@48Hz
Drivers	2 x 10"/3" VC neodymium LF woofers 1 x 3" neodymium HF compression driver
Rated power(RMS)	850Wrms
Recommended AMP	1000-1600W into 8ohms
Sensitivity(1W/1M)	102dB
Maximum SPL	132dB continuous, 138dB peak
Nominal impedance	8ohm nominal
Dispersion(-6dB)	90° horizontal, 10° vertical
Finish	Polyurea Paint
Protective grille	With black perforated steel
Connectors	2 x Neutrik speakon NL4

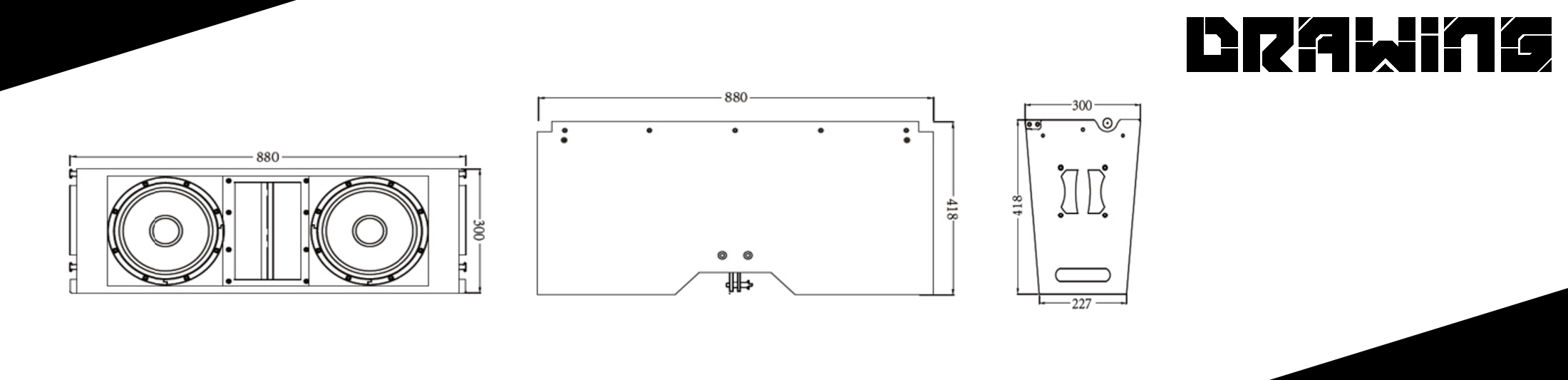

Dimensions	(W)880 x (H)300 x (D)418mm
Weight	38KG

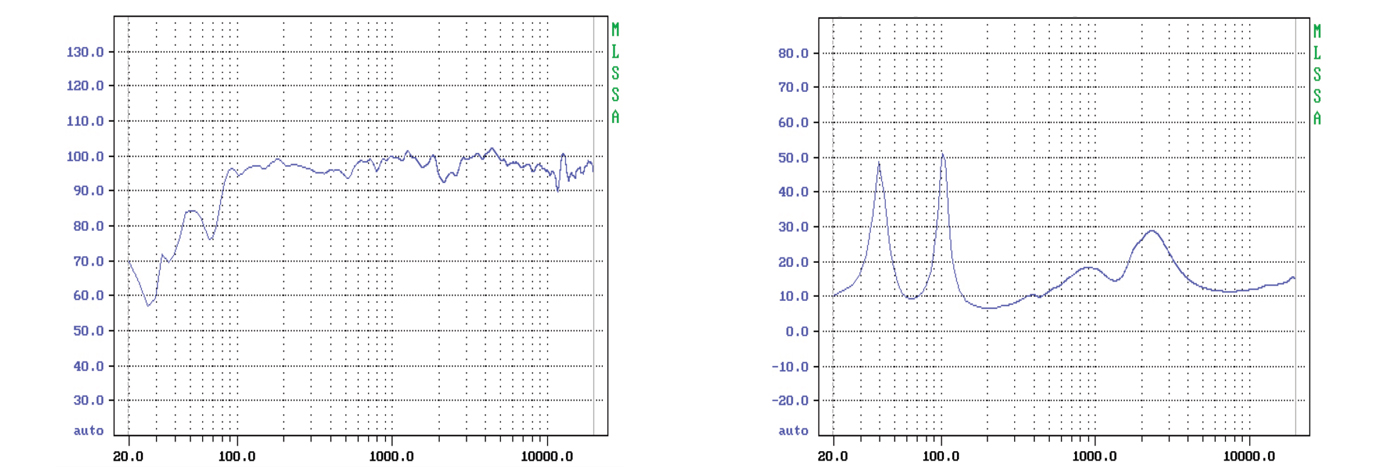

FREQUENCY / IMPEDANCE Chart of Kiva TP-920

KIVA920FRIM
