MS221

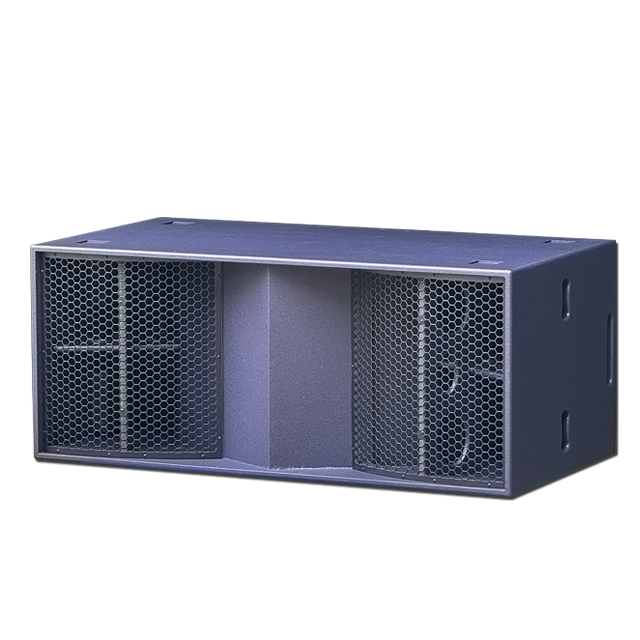

MS221 is a horn loaded subwoofer that incorporates dual 21”/6” VC neodymium woofers that deliver the low end down to 28Hz without compromise. The folded horns enables the enclosure to contain a longer sound path and have been acoustically optimized to achieve high output and low distortion whilst maintaining clarity and impact.

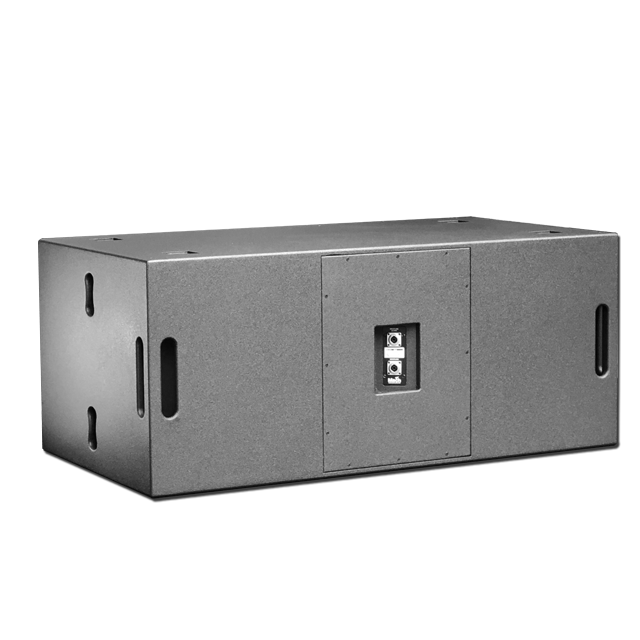

Original Russian Sveza birch plywood cabinet is finished in polyurea paint and equipped with flush handles, steel grill, locating feet, slots, heavy duty wheels and speakon NL4 connectors.

Features:

4000W AES power handling;
Improved transient and phase response;
Low distortion horn design for maximum sound pressure level.

Applications:

Touring sound reinforcement;
Stadiums, arenas, concert halls and theaters;
Large-scale events.

Model:
MS221
Brand:
TPA

Availability:

Quantity:



Inquire Add to Basket

Sub Bass System Subwoofer Sound System Sound system culture

Product Information

MS221	Technical Specifications
Type	Double 21” horn loaded heavy duty subwoofer
Frequency response	28Hz – 150Hz, -10dB@26Hz
Drivers	2 x 21"/6" VC Neodymium LF woofers
Rated power(RMS)	2000W
Recommended AMP	3000 - 4000W into 4 ohms
Sensitivity(1W/1M)	106dB
Maximum SPL	140dB continuous, 146dB peak
Nominal impedance	4 ohms
Finish	Polyurea coating
Protective grille	With / without black perforated steel
Connectors	2 x Neutrik speakon NL4

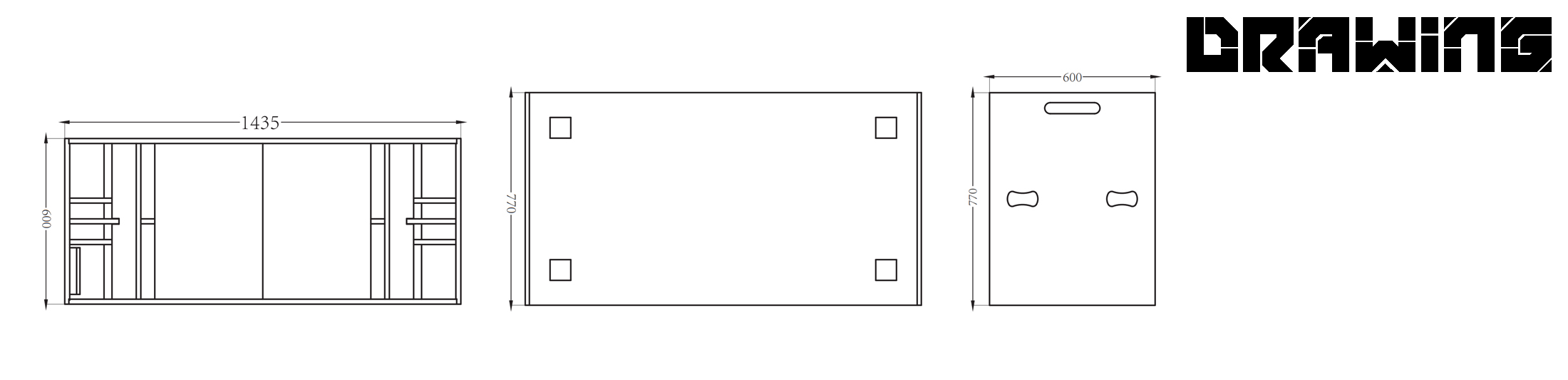

Dimensions	(W)1435 x (H)600 x (D)770mm
Weight	115KG

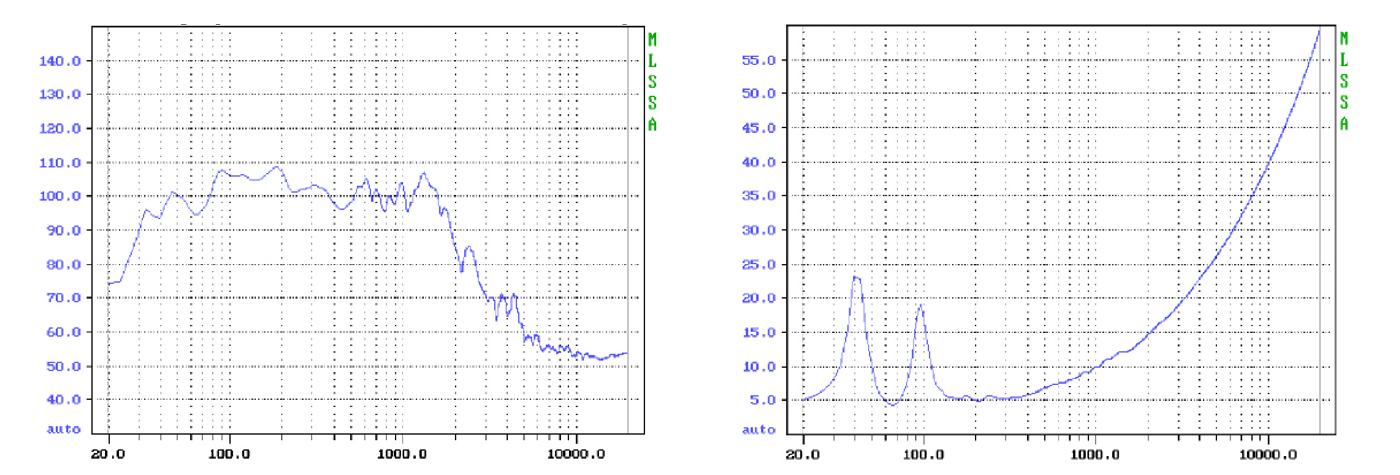

FREQUENCY / IMPEDANCE Chart of MS221

MS221FRIM
