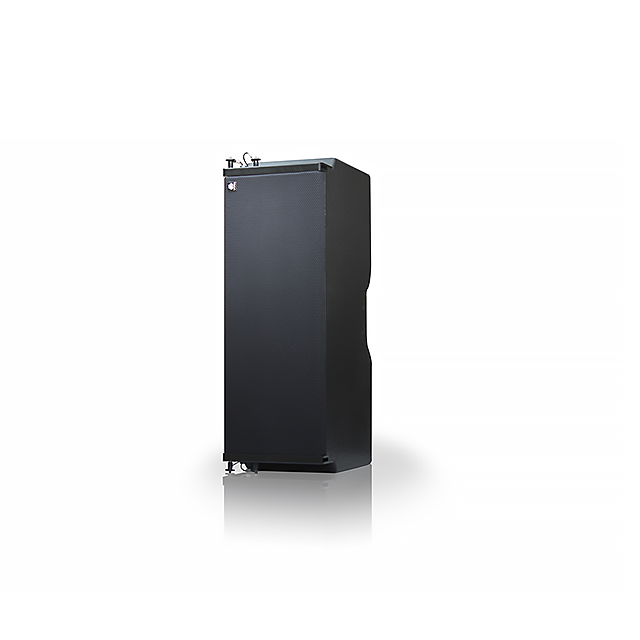

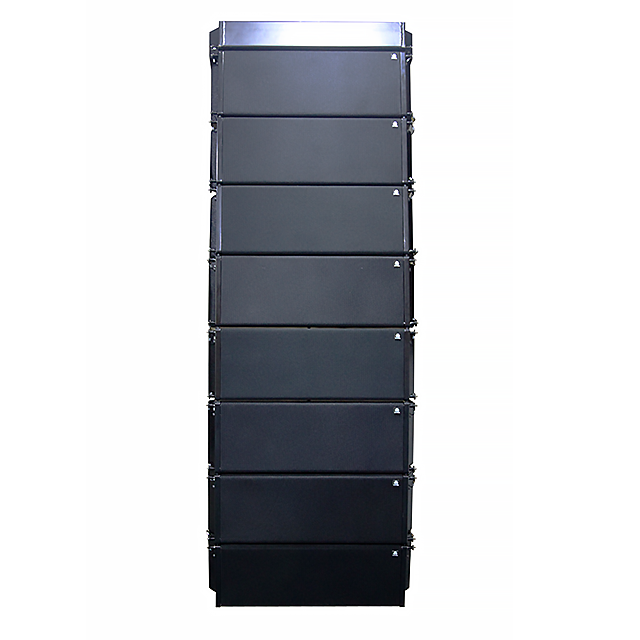

Mini TP-740

The Mini TP-740 is a 2-way line array element housing two 8"/2" VC neodymium drivers and a dendritic device on a 1.4" exit/3" VC neodymium HF compression driver along with a passive crossover network. The 90°constant directivity horizontal dispersion pattern is maintained down to 450Hz, while vertical HF dispersion of 10° allows the Flex Arrays to be scalable when needed. The mechanical design enables vertical splay angles to be set at 0°, 2.5°, 5°, 7.5°, and 10°, and two NL4 connectors wired in parallel are mounted on the rear panel.

Featurers:
Expetional fidelity and transient response for intelligibility and high impact;
Innovative neodymium drivers supported;
Extremely high power-to-size ratio;
Optimized line array behavior provides consistent response over long throws.

Applications:
Touring Sound Reinforcement;
Small theaters;
House of worship, ballrooms, corporate AV;
Churches & Auditorium installs etc.

Model:
Mini TP-740
Brand:
TPA
Code:
Mini TP-740

Availability:

Quantity:



Inquire Add to Basket

Line Array line array speaker line array system Professional Speaker

Product Information

Mini TP-740	Technical Specifications
Type	Compact 2-way line array element

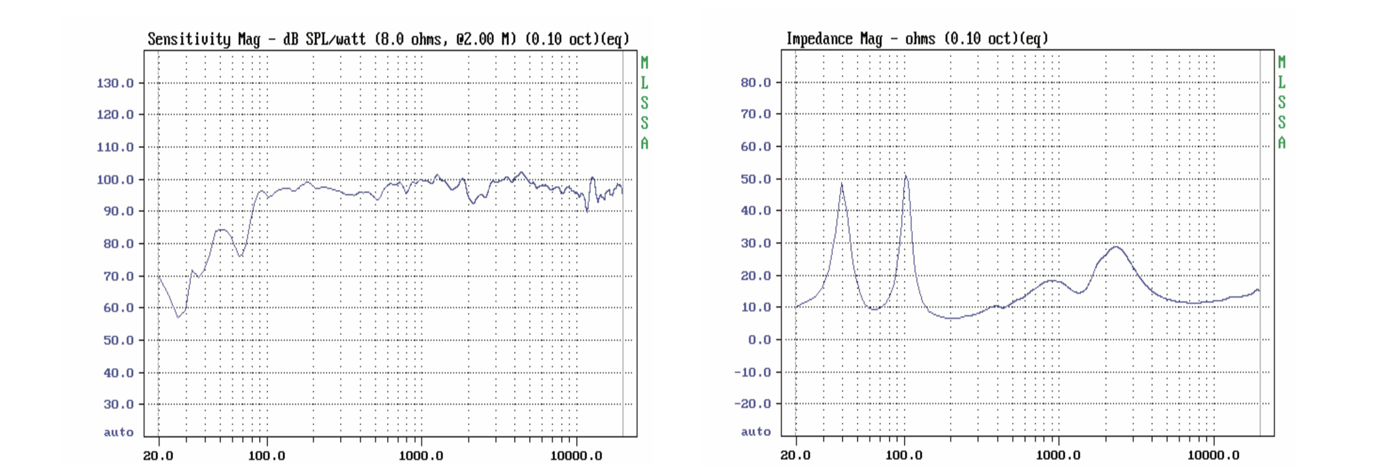

Frequency response	60Hz - 20KHz+/-3dB, -10dB@55Hz
Drivers	2 x 8"/2" VC neodymium LF woofers 1 x 3" neodymium HF compression driver
Rated power(RMS)	400Wrms
Recommended AMP	800-1200W into 8ohms
Sensitivity(1W/1M)	98dB
Maximum SPL	123dB continuous, 129dB peak
Nominal impedance	8ohm nominal
Dispersion(-6dB)	90° horizontal, 10° vertical
Finish	Polyurea Paint
Protective grille	With black perforated steel
Connectors	2 x Neutrik speakon NL4

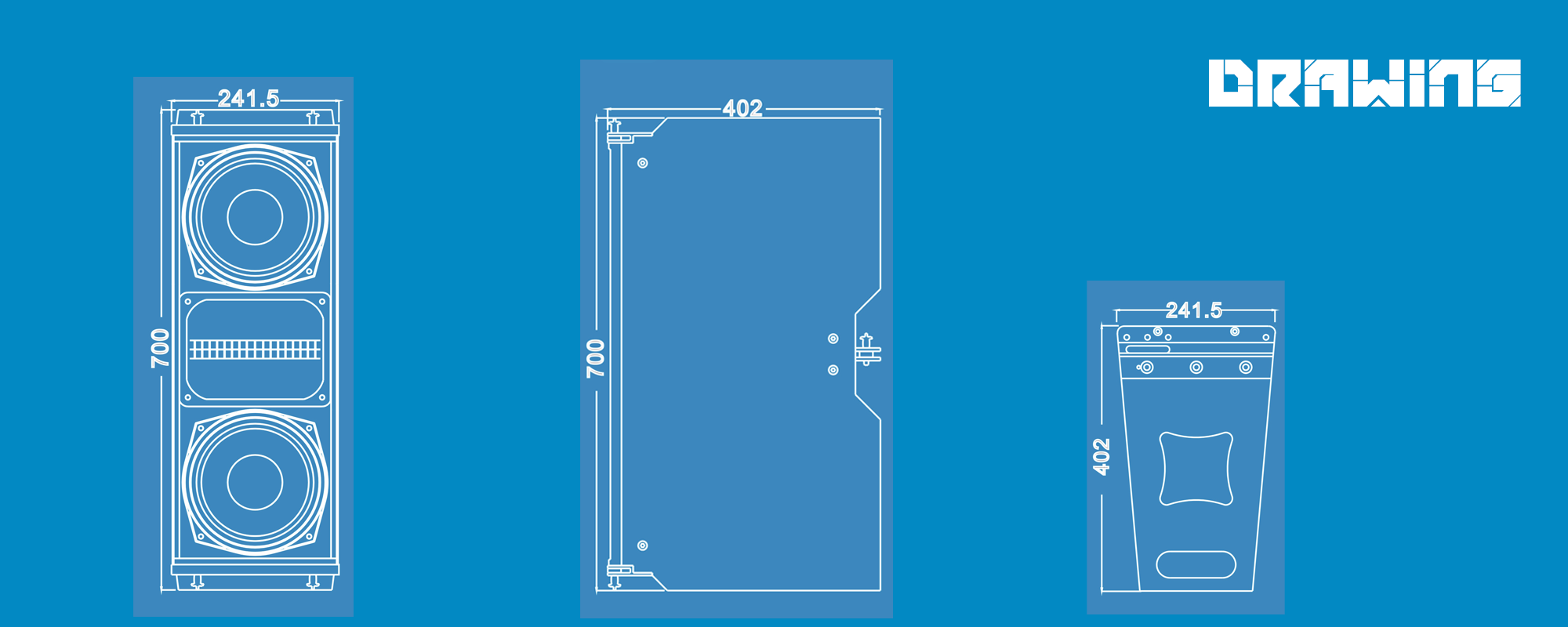

Dimensions	(W)700 x (H)242 x (D)402mm
Weight	23KG
