PSM318

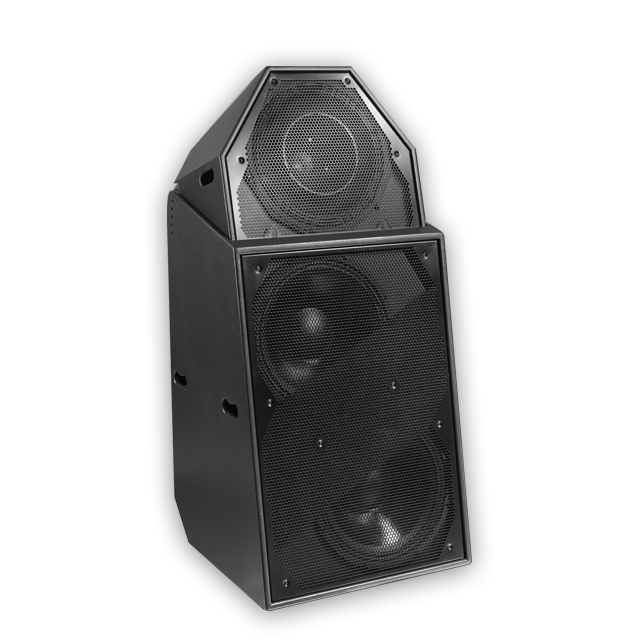

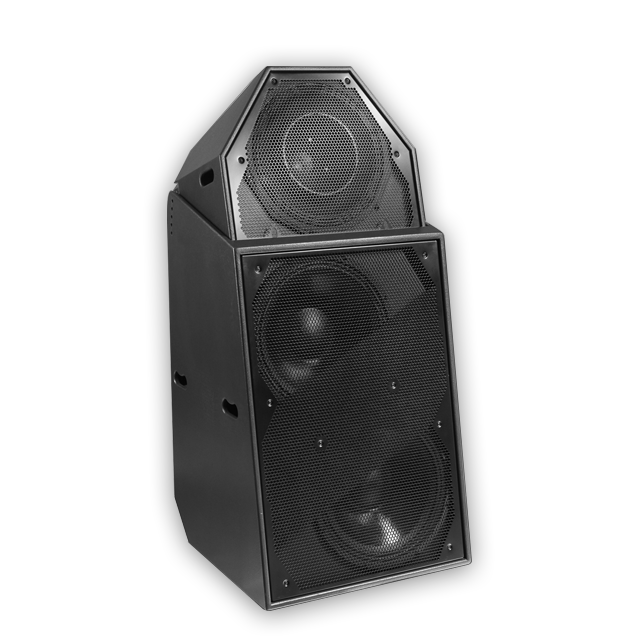

PSM318 DJ Monitor delivers outstanding full frequency output, accuracy and immediacy, setting a new benchmark for DJs looking for ultimate stage sound.

It comprises a new double 18” bass reflex enclosure - providing very strong near-field sub-bass - with a separate triple concentric enclosure for the rest of the frequency spectrum. These two enclosures join with a clever quick-latch system to provide simple angle adjustment for different stage positions and DJ heights. The triple concentric arrangement of the bass reflex enclosure combines a very high power 18” driver with a coaxially mounted two-way compression driver. The natural materials used in the midrange section of the compression driver give previously unheard clarity and definition to the vocal range and the ultra-fast 18" driver with its Neodymium magnet and 5” voice coil delivers excellent mid-bass definition. The overall design has been optimised to minimise sight line impact.

Model:
PSM318
Brand:
TPA
Code:
PSM318

Availability:

Quantity:



Inquire Add to Basket

dj monitor stage monitor Pro Audio

Product Information

Technical Specification

Driver: 2 x 18" (PSM318L)

OPERATING BAND: 25Hz - 85Hz

SENSITIVITY AT 1M: 101dB at 2V

POWER (AES): 1100W

NOMINAL IMPEDANCE: 4Ω

18"

85Hz - 694Hz

104dB at 2.8V

600W

8Ω

5" + VHF (V1)

694Hz - Up

112dB at 2.8V

80W

8Ω

MF + HF (V2)

600Hz - Up

111dB at 2.8V

100W

8Ω

USABLE BANDWIDTH (-3DB)

WEIGHT

NOMINAL DISPERSION

CONNECTORS

30Hz - 18kHz

107kg (236lbs)

70° Conical

Neutrik NL8 connection to lower section with NL4 glanded lead to top section
