RAT72

The RAT72 power amplifier represents TPA Audio flagship series on the 2-channel SMPS power amplifier range.Featuring the most advanced technologies on audio power amplification, it's able to deliver an enormous power density with an unprecedented sonic quality from a very lightweight 2 rack-unit amplifier. This great performance and extreme efficiency, achieved through its advanced Regulated SMPS power supply, turns the RAT72 in the industry standard for world class pro-touring sound reinforcement applications.

Features
TPA renowned Regulated SMPS power supplies.
High efficiency Class I™ power modules.
Highly sensitive CMRR balanced inputs for improved noise rejection. .
Top electronic elements for a superior sonic quality.

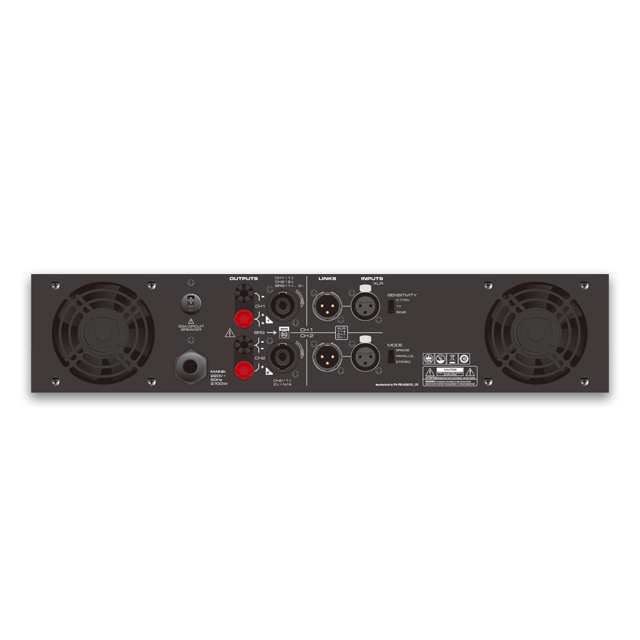

XLR input and Neutrik SpeakON NL4.
Input sensitivity selector on the back panel .
Routing mode selector on the back panel (stereo / bridge-parallel).

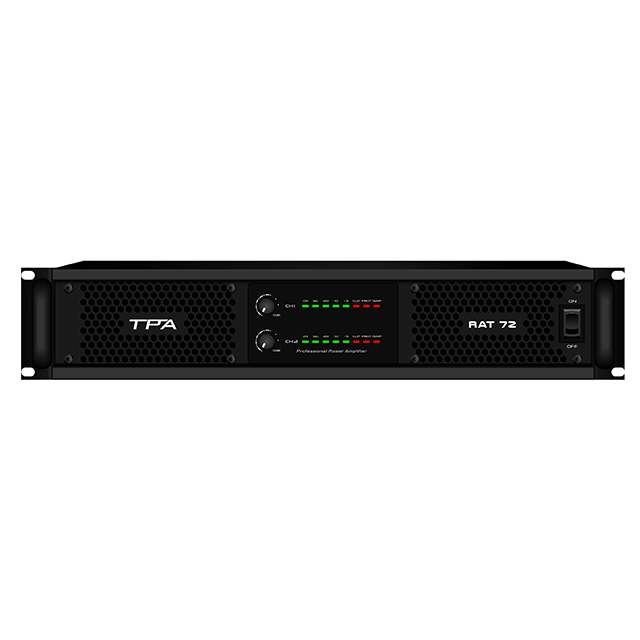

Channel independent temperature, protection and clip warning indicators on the front panel.
Channel independent power and -5dB / -10dB / -20dB / signal presence indicators on the front panel.

Applications
Mid and big world-class pro-touring applications.
Mid and big sized clubs and installations with high power density requirements.
Professional rental industry.

Model:
RAT72
Brand:
TPA
Code:
RAT72

Availability:

Quantity:



Inquire Add to Basket

power amplifier class I amplifier class TD amplifier SMPS amplifier

Product Information

Specifications

Model	RAT72
Output power	Output power (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%)
8Ω Stereo	2000W x2*
4Ω Stereo	3600W x2*
2Ω Stereo	4600W x2*
8Ω Bridge	7000W x2**
4Ω Bridge	7800W x2**
Other specifications
Frequency Response	20Hz – 20kHz(+0/-1dB)
THD+N	≤ 0.1%
S/N Rate	≥ 90dB
Input Sensitivity	0.775v / 1v / 32dB
Input Impedance (bal/unbal)	20kΩ / 10kΩ
Voltage Gain	44.2dB
Cooling	Air flow from front to rear
Output circuitry	Class I™
Dimension / Weight(The above packing dimensions, net weight, and gross weight are for reference only. The accurate values are subject to the identification on the batch of products.)
Product Dimensions (mm)	W483 x H456.5x D89
Packing Dimensions (mm)	W595 x H565 x D170
Weight	15.8kg

Remark：
1、Power tested under EIA standard.
2、*Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
3、 **Power tested under the condition of 20ms burst, 1KHz sine wave and 1% THD.
4、TPA reserves the right to make any changes to the product specifications without prior otice.
