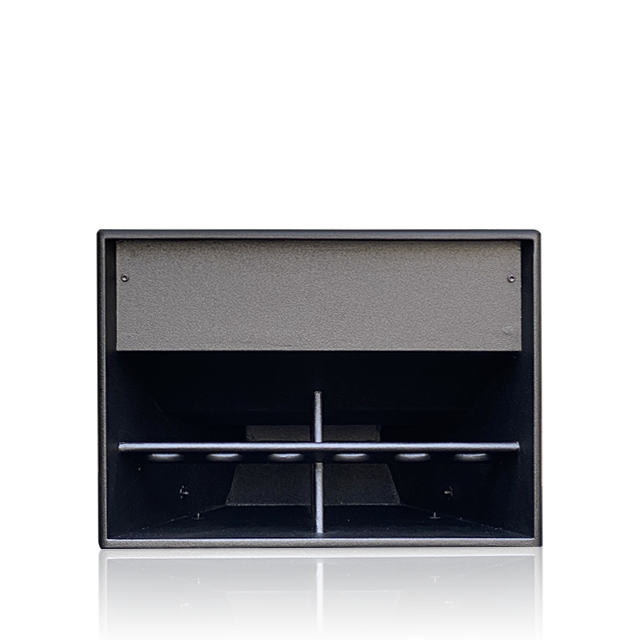

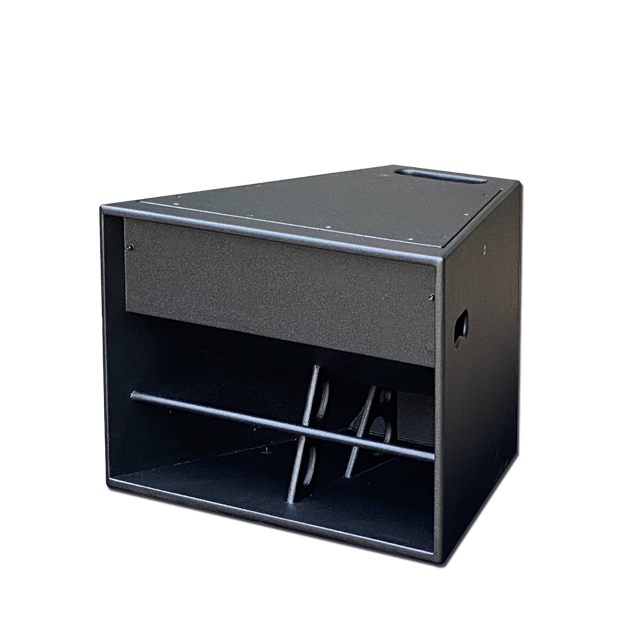

TX-6 EL

The TX-6 EL is designed to complement the TX-6 by increasing the low frequency output. The combination of a TX-6 and TX-6 EL increases the versatility of an TX-6 system by realising the full potentional of the mid-high components. the result is a more powerful system with an addtional 6dB of headroom.

TX-6 EL supplements TX-6 cabinets to provide additional mid bass headroom – especially useful for flown TX-6 installations.
It shares the same footprint as the TX-6, and is attached via the vertical or side M10 mounting points. The joined assembly can then be ground stacked or flown using the appropriate hardware. Pairs well with K121s or K124s to form a complete system.

Features:
Additional mid-bass for TX-6 systems;
Identical footprint and hardware to TX-6;
Integral handles.

Model:
TX-6 EL

Availability:

Quantity:



Inquire Add to Basket

Point Source Speaker Sound System Sound system culture Pro Audio

Product Information

TX-6 EL	Technical Specifications
Type	Compact Single 15" horn loaded kick bass system
Frequency response	80Hz - 250Hz+/-3dB, -10dB@70Hz
Drivers	1 x 15" neodymium LF woofer
Rated power(RMS)	400Wrms into 8ohms
Recommended AMP	800W into 8ohms
Sensitivity(1W/1M)	103dB
Maximum SPL	136dB continuous, 141dB peak
Nominal impedance	8ohms
Finish	Polyurea coating
Protective grille	With / without black perforated steel
Connectors	2 x Neutrik speakon NL4
Dimensions	(W)661 x (H)484 x (D)565mm
Weight	30KG

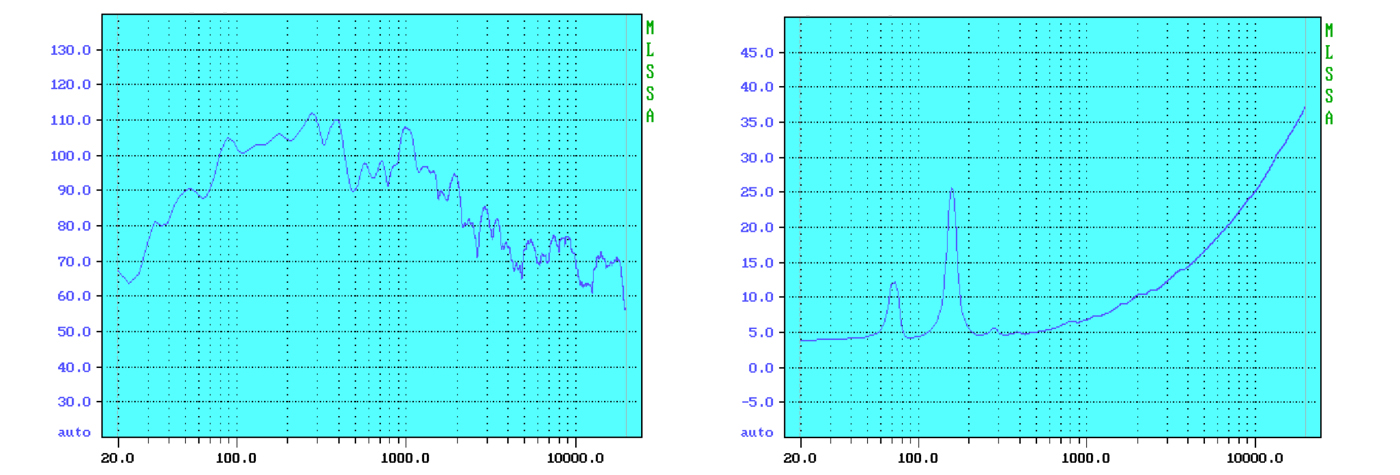

FREQUENCY / IMPEDANCE Chart of TX-6 EL

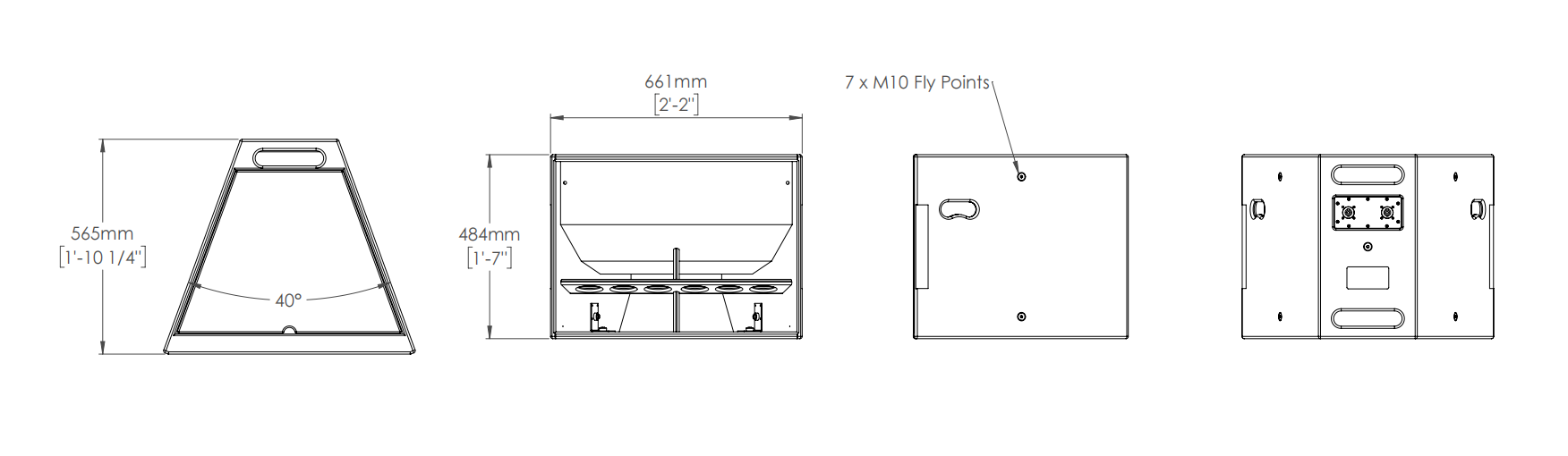

TX-6 ELD
