TX-6

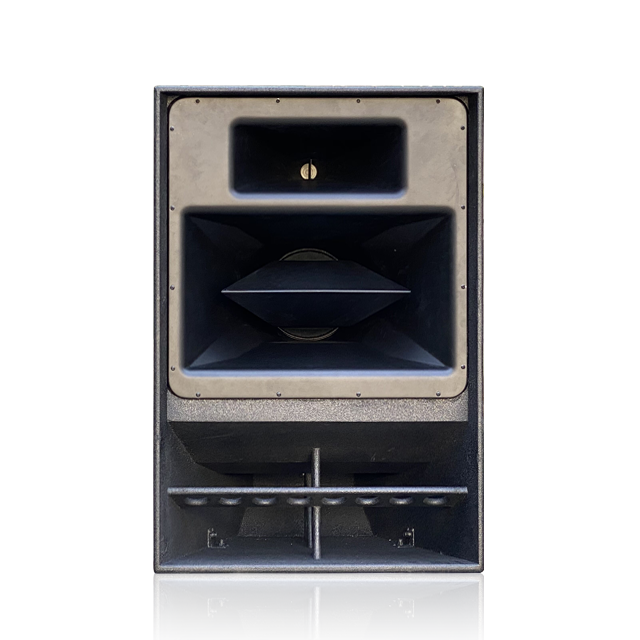

The TX-6 is a high intensity loudspeaker combining horn-loaded 15" mid-bass, 10" mid-range and a 1.4" compression driver into a very compact enclosure offering class leading efficiency and performance. The TX-6 has 50° nominal horizontal dispersion and physically arrays at 40°; two wide giving smooth coverage over 90°. Perfect for all applications and genres of music, TX-6 systems offer stage-of-art sound quality. We recommend their use with TX-6 EL, TX-6 EL215, DB218 MK2, DB121, DB-124 or DB221 and K series bass enclosures.

Features:

Fully horn loaded for high efficiency;

Three-way(passive HF version also available);

Fitted with M10 flypoints;

Low weight Neodymium magnets throughout;

Optional spray board with stacking kit;

TX-6 EH mid-high version also available.

Applications:

Eletric Scenes;

Touring sound reinforcement;

Free party, rave party, teknival.

Model:
TX-6

Availability:

Quantity:



Inquire Add to Basket

Point Source Speaker Pro Audio Sound System Sound system culture

Product Information

TX-6	Technical Specifications
Type	Compact 3 way trapeziod loudspeaker
Frequency response	55Hz - 20KHz+/-3dB, -10dB@40Hz
Drivers	1 x 15"/4" voice coil LF neodymium woofer 1 x 10" MF neodymium driver 1 x 3" HF neodymium compression driver
Rated power(RMS)	LF: 400Wrms into 8Ω, MF: 250Wrms into 16Ω, HF: 100Wrms into 32Ω
Recommended AMP	1500 - 2100W into 4 ohms
Sensitivity(1W/1M)	LF: 103dB / MF: 108dB / HF: 109dB
Maximum SPL	138dB continuous, 142dB peak
Nominal impedance	LF: 8Ω / MF: 16Ω / HF: 32Ω
Dispersion(-6dB)	50° horizontal, 25° vertical
Finish	Polyurea Paint
Protective grille	With / without black perforated steel
Connectors	2 x Neutrik speakon NL8

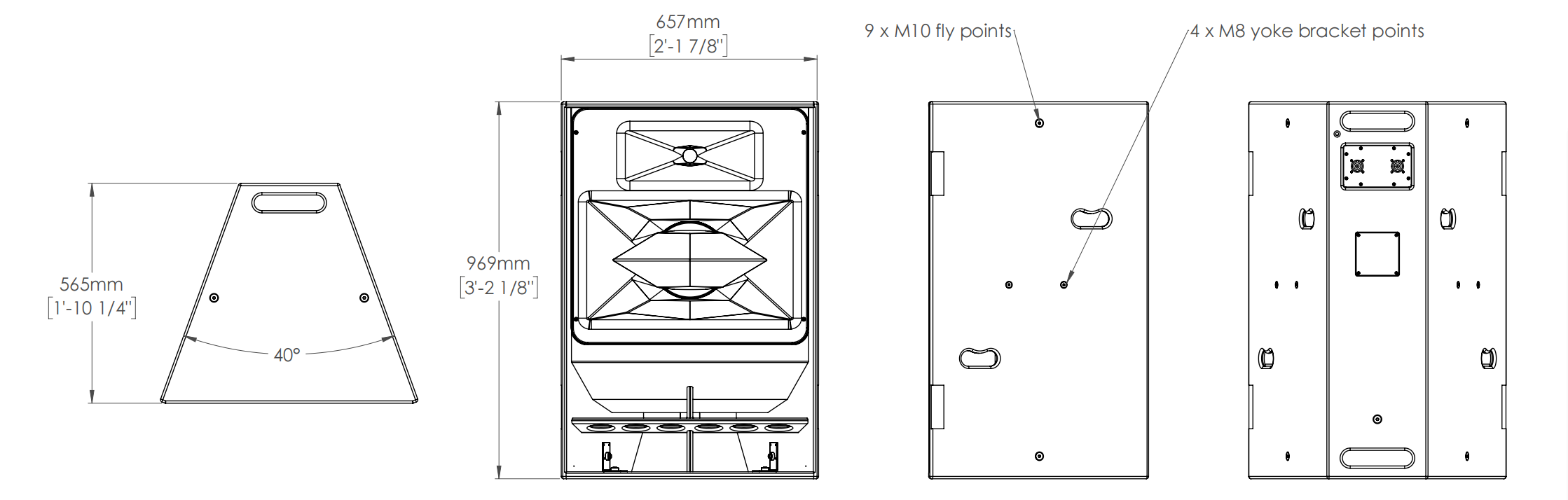

Dimensions	(W)661 x (H)969 x (D)565mm
Weight	60KG

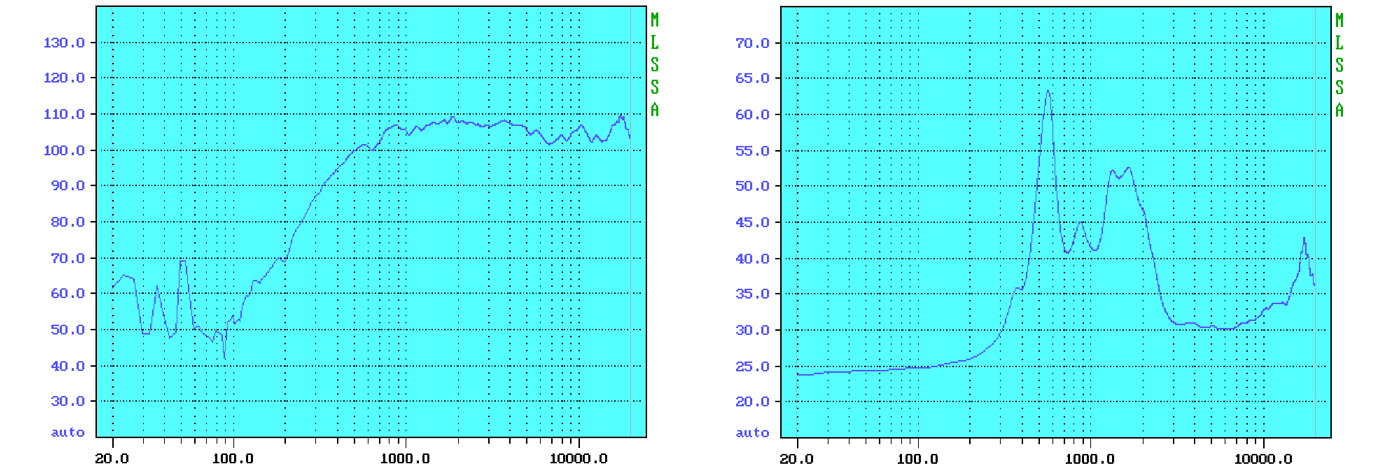

FREQUENCY / IMPEDANCE Chart of High Section of TX-6

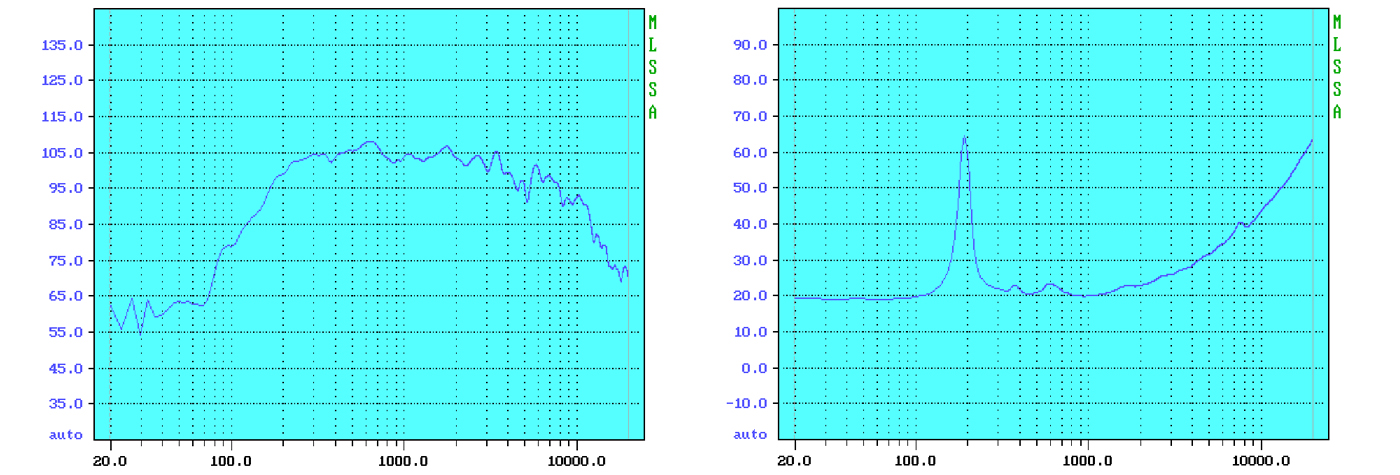

FREQUENCY / IMPEDANCE Chart of Mid Section of TX-6

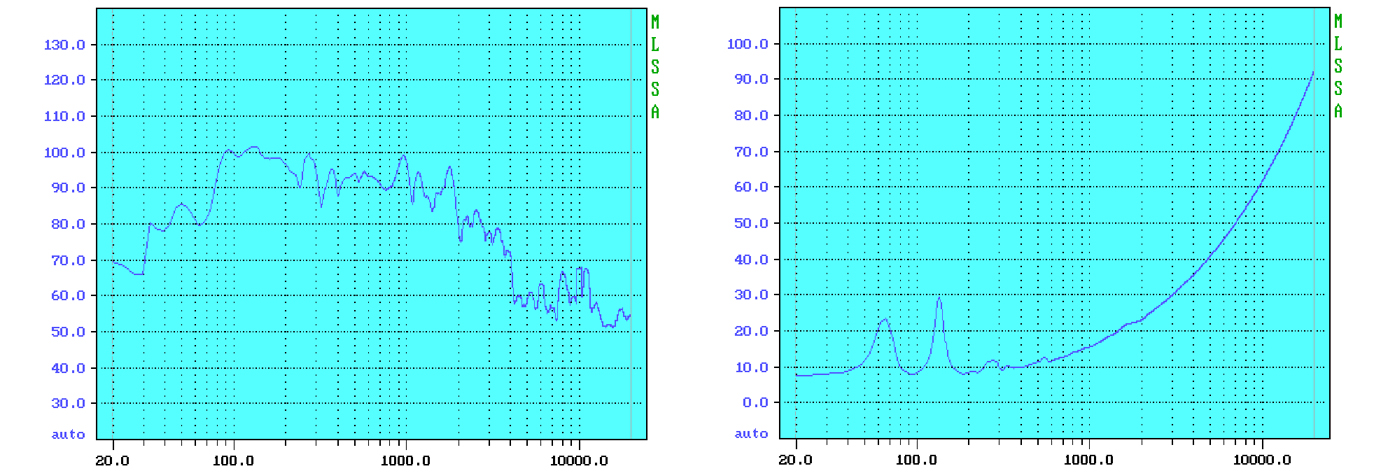

FREQUENCY / IMPEDANCE Chart of Low Section of TX-6
