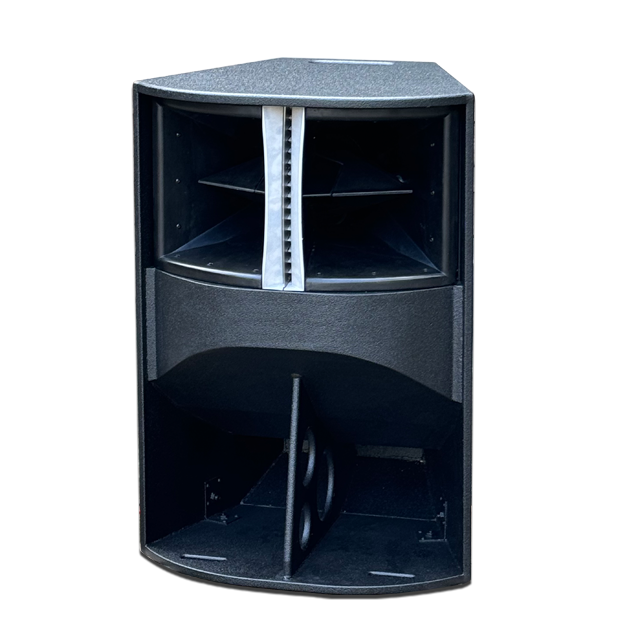

X153

X153 is a significant developement of the full range, fully horn loaded cabinet concept. Utilizing the latest waveguide technology, X153 provides 90° dispersion and higher SPL.

X153's advanced driver technology delivers market leading resolution and detail. It is an unbeatable choice for live venues, small club spaces and theatres. Capable of high SPL from a relatively compact enclosure, use as a pair for small live music events or as a four point small club system. Combine with the K Series or DB range of bass loudspeakers for increased low frequency energy / output.

Features:

Single loudpspeaker solution;

Wide 90° horizontal dispersion;

Full range, highh SPL;

High efficiency/low energy consumption design;

Latest / advanced designed drivers;

Wide bandwidth midrange(280Hz - 5KHz);

New isophase diffraction HF waveguide technology.

Model:
X153

Availability:

Quantity:



Inquire Add to Basket

Pro Audio Sound System Professional Speaker Sound system culture

Product Information

X153	Technical Specifications
Type	Compact 3 way point source speaker

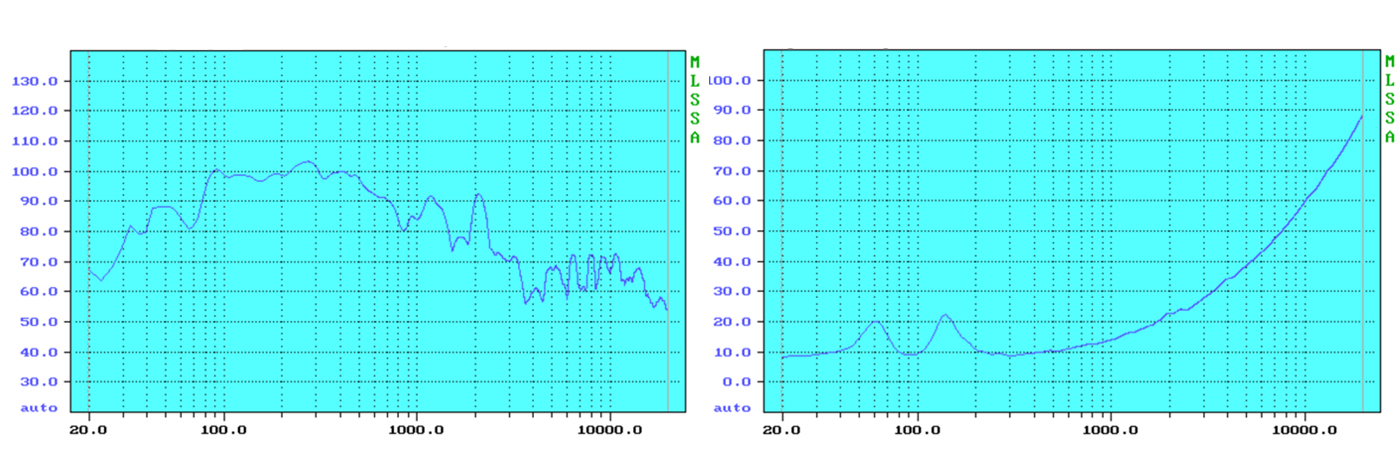

Frequency response	60Hz - 18KHz+/-3dB, -10dB@48Hz
Drivers	1 x 15" neodymium LF woofer 1 x 8" neodymium MF driver 1 x 1.75" neodymium HF compression driver
Rated power(RMS)	HF: 100Wrms/16ohms; MF: 200Wrms/16ohms; LF: 400Wrms/8ohm
Recommended AMP	800 - 1350W into 8ohms
Sensitivity(1W/1M)	HF: 109dB / MF: 108dB / LF: 106dB
Maximum SPL	136dB continous, 142dB peak
Nominal impedance	HF: 16ohms / MF: 16ohms / LF: 8ohms
Dispersion(-6dB)	90° horizontal, 13° vertical
Finish	Polyurea Paint
Protective grille	Without black perforated steel
Connectors	2 x Neutrik speakon NL8

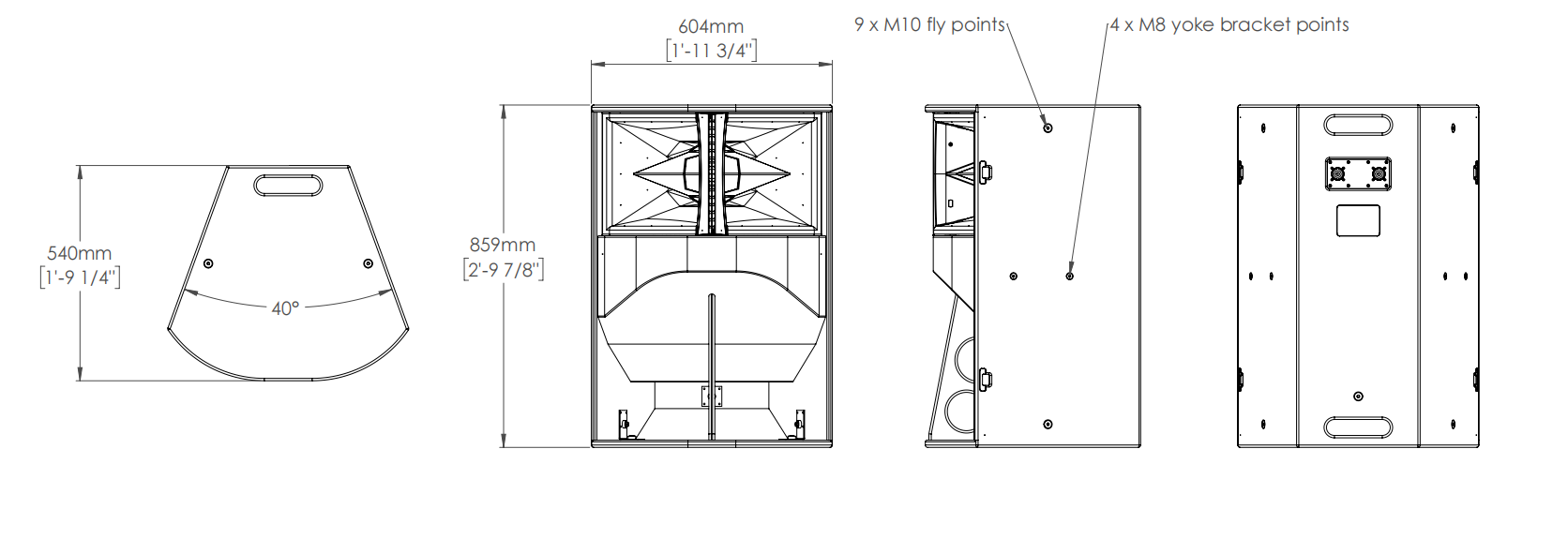

Dimensions	(W)604 x (H)859 x (D)540mm
